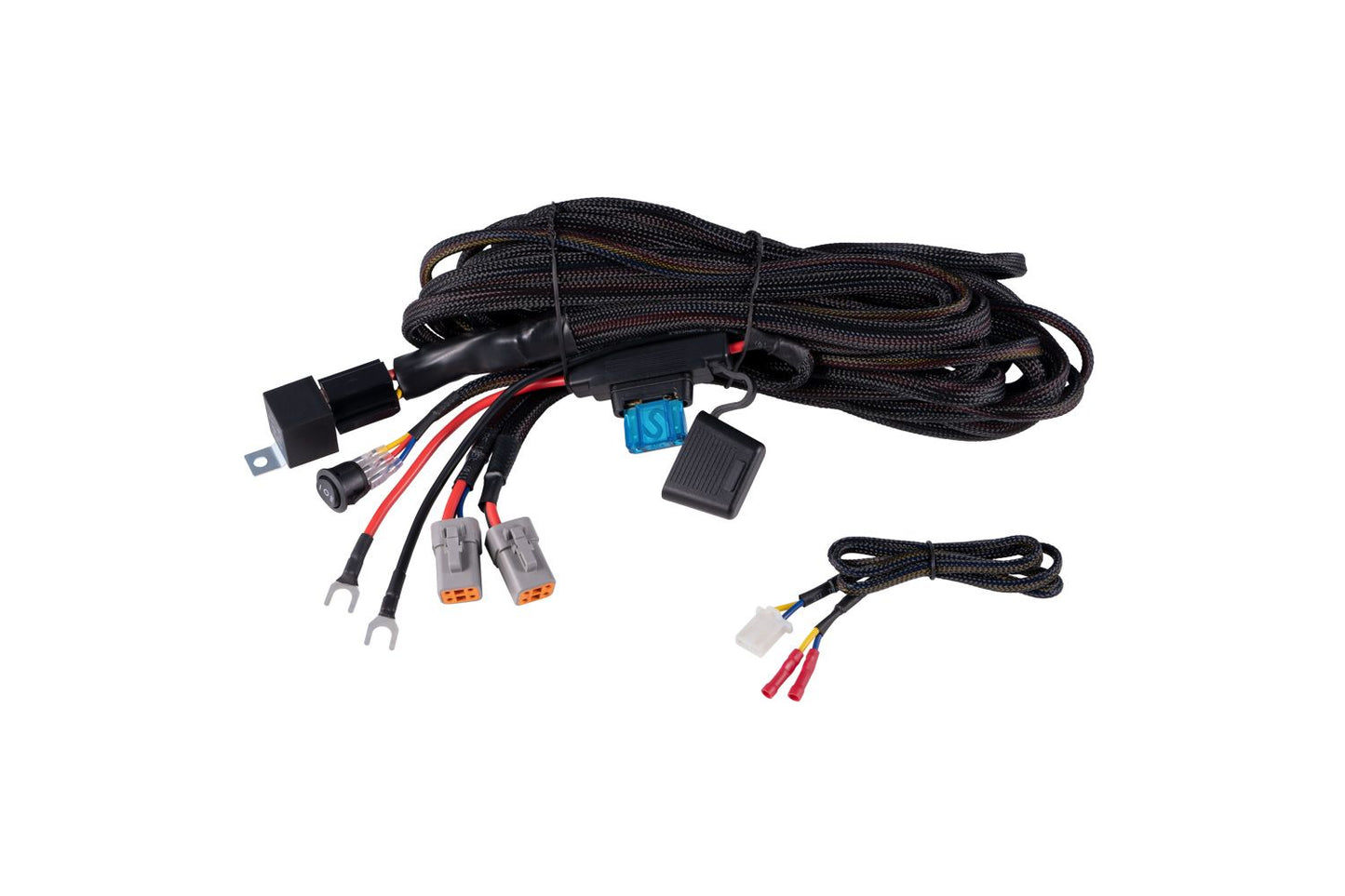

Ultra Heavy Duty Dual Output 4-pin Wiring Harness

Ultra Heavy Duty Dual Output 4-pin Wiring Harness

M.R.P. Rs. 13,049
M.R.P. Rs. 13,049
Sale

SKUDD4124
In-stock items are delivered within 5–10 business days. For orders containing both in-stock and pre-order items, the entire order will be shipped together based on the pre-order delivery timeline of 6–8 weeks.
View full details
Description
Specification
Part Numbers
Q&A
Installation

Features

  • Powers 5-8 Pod SS5 CrossLink Pro Lightbars.
  • Connects directly to the battery to power your LED pods.
  • High capacity 10AWG wiring.

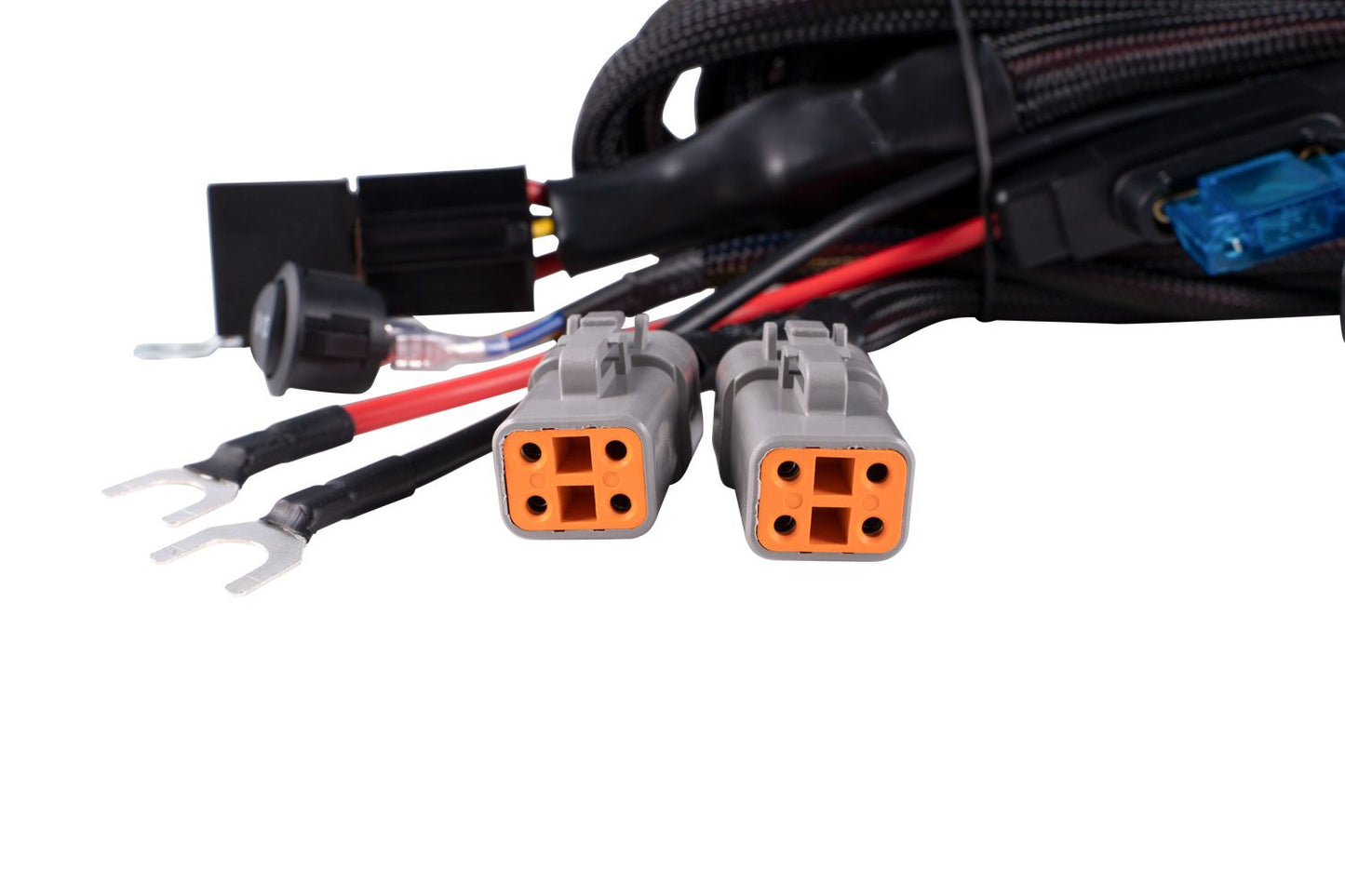

  • Dual Deutsch DT-P output connectors.

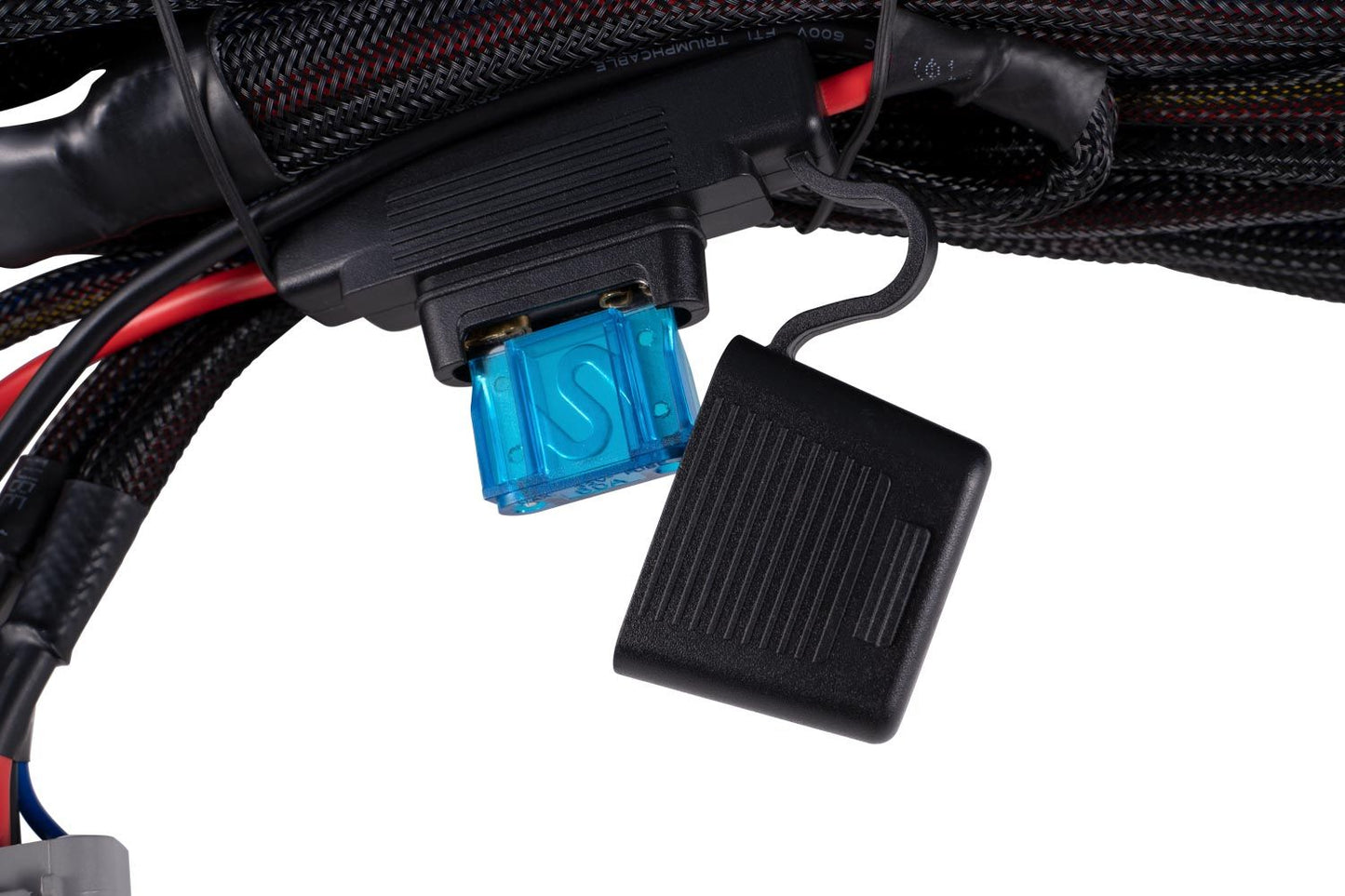

  • 60A waterproof fuse, and 80A 12V relay to safeguard the electrical systems in your pods.

Overview

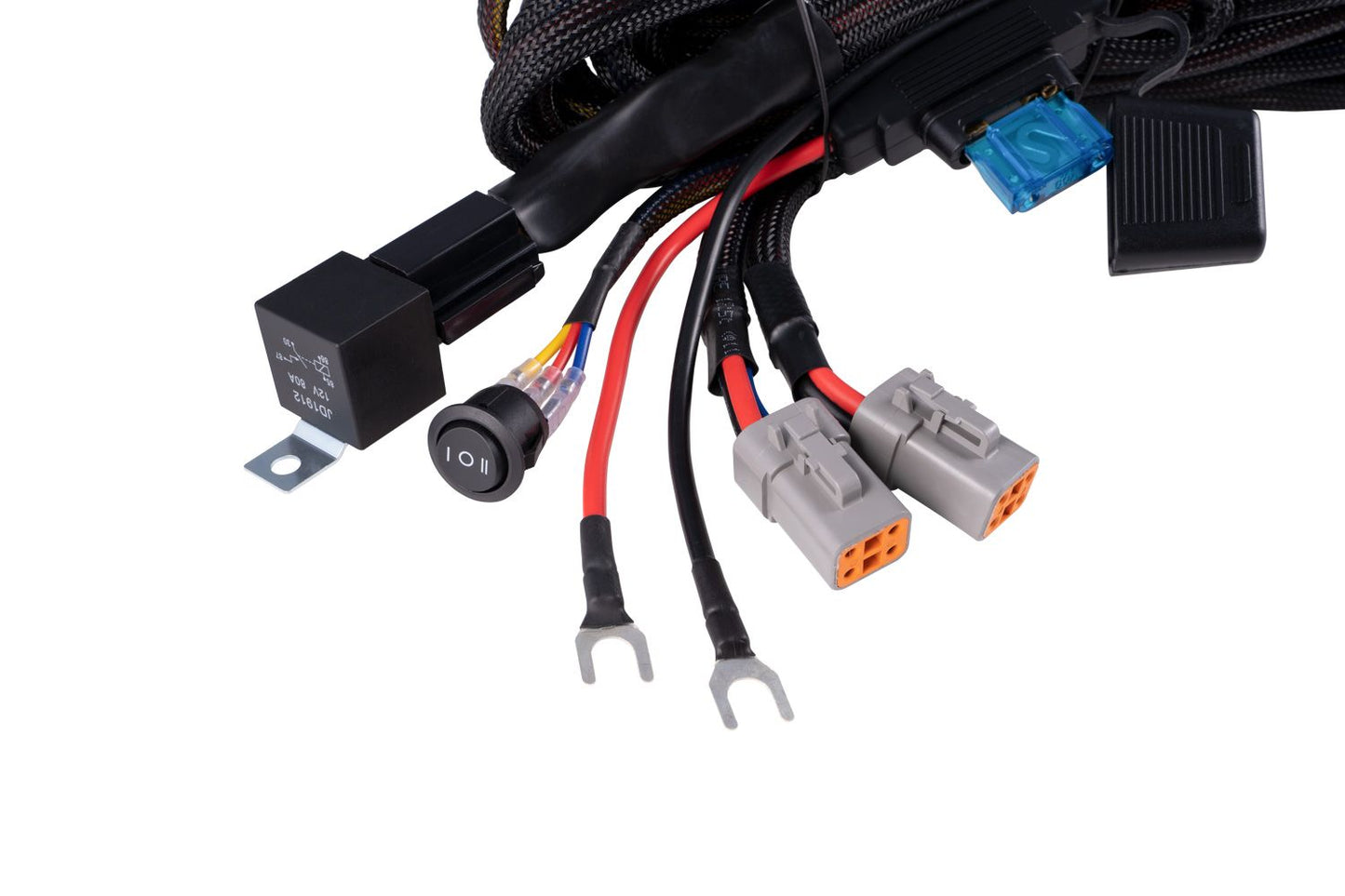

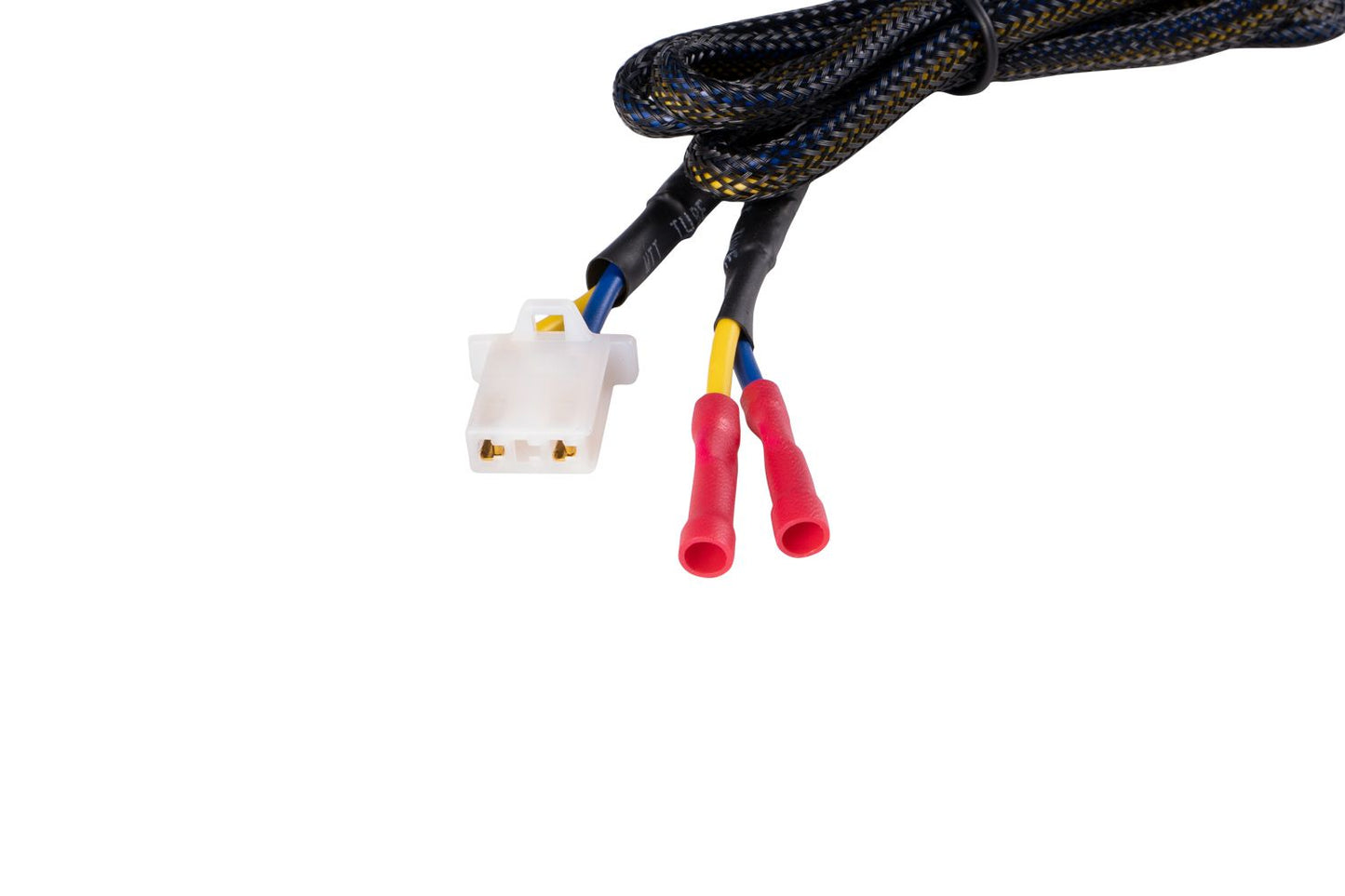

Stage Series. This harness has been designed specifically to safely power CrossLink Pro Lightbars with five (5) to eight (8) SS5 Pro LED Pods. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. You have the option to control your pods using the included three-way switch to toggle between the backlight, off, and the main beam, or control them through your Auxiliary Switch Bank with the included adapter. This harness uses high capacity 10AWG wiring and a Deutsch DT-P connector for simple plug-and-play installation.

This harness safely powers up to 60A of auxiliary lamps. The SS5 Pro draws 6.7A per pod.

Compatibility Please note that this harness has two DT-P size output connectors. These are intended to connect to a corresponding Ultra-Heavy-Duty (UHD) SS5 Splitter harness, to build a multi-pod lightbar. These connectors will not plug directly into any LED product offered by Diode Dynamics.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!


Quantity: One (1)
Warranty: 3 year warranty
100% Satisfaction Guarantee

Specifications

Wire Size: 10AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): DT-P 4-Pin
Unit Weight (lb): 3.2
Product Weight (lb): 3.2
Shipped Weight (lb): 3.8

What's Included

100% Satisfaction Guarantee

The following part number is shown on this page:

SKU Price Name Weight Driver Components
DD4124 ₹13049 Ultra Heavy Duty Dual Output 4-pin Wiring Harness 3.8 lbs

  1. Installed with an SS3, what will happen if both back up light and main LED light are turned on at the same time?
    This harness has 3 positions (main beam on, backlight on, and off), and you are not able to select more than one option at any given time. That being said, if you custom wire this in a way where both the backlight and the main beam are both getting power, only the main beam will be on.

Installation Time: 5-10 minutes

Tools Needed: None

Modification: None

Installation Guide: Click to download
