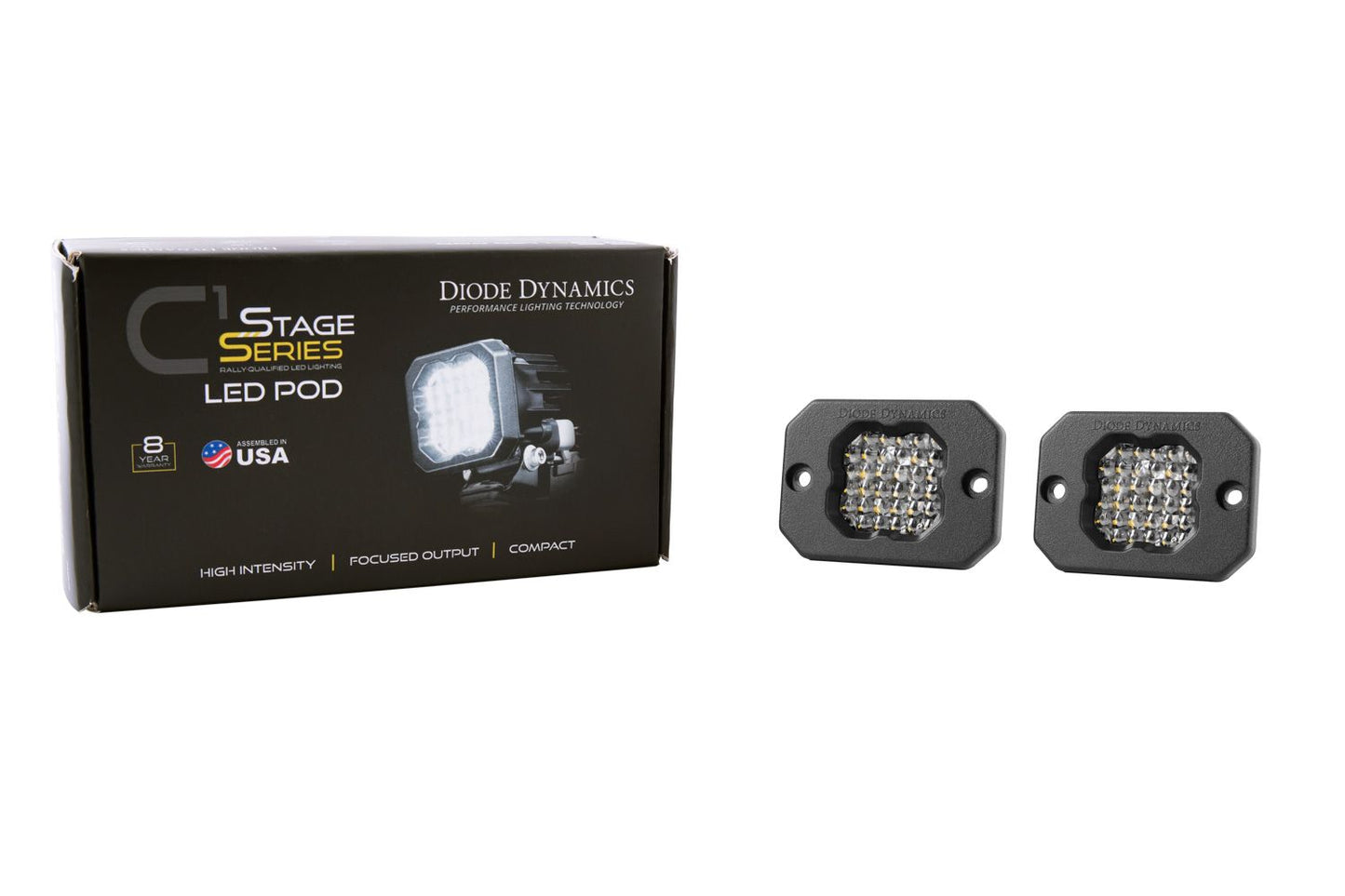

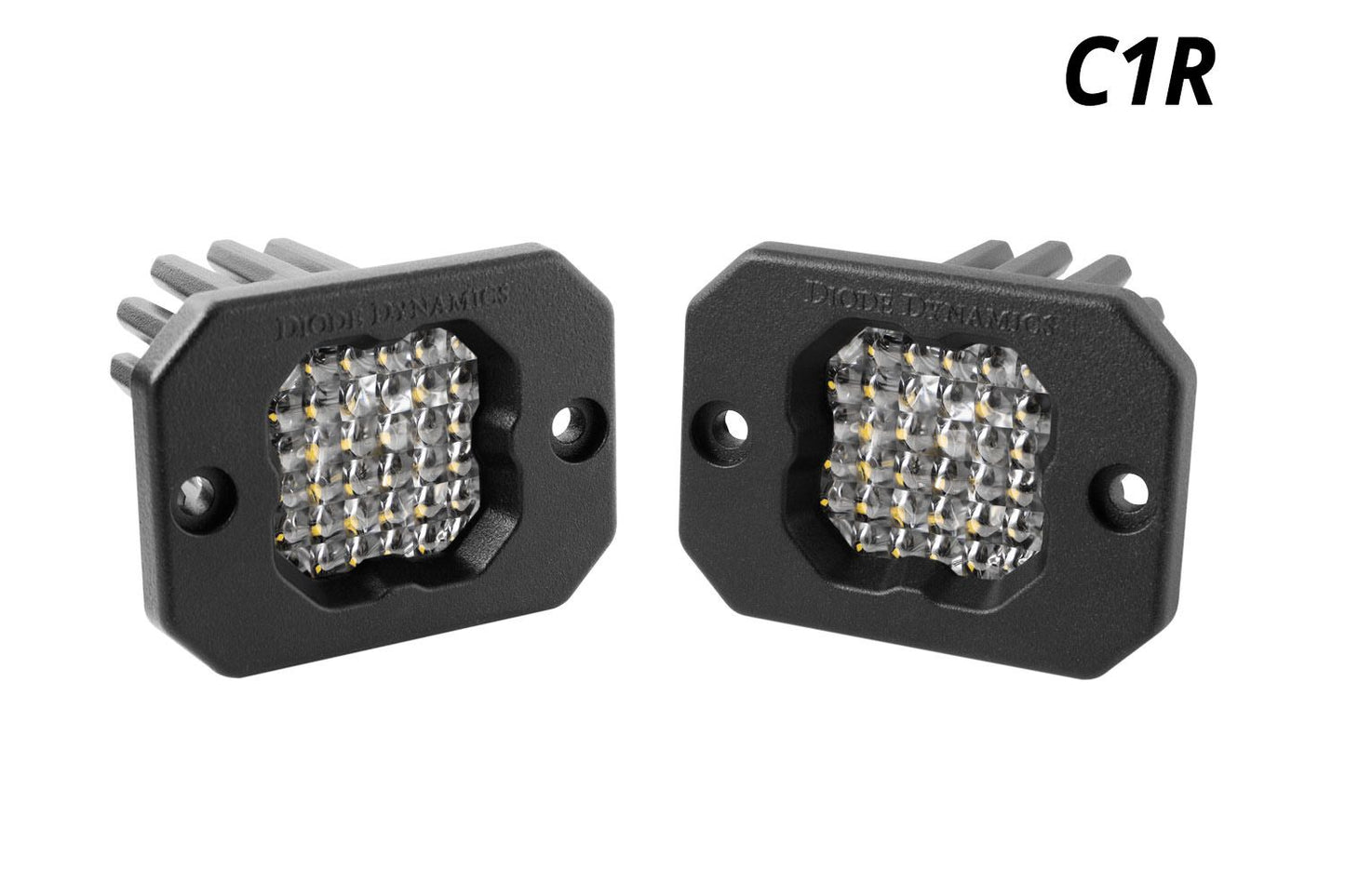

Stage Series C1R White Flood Flush Mount LED Pod (pair)

Features

• Allows for flush installation on bumper and truck beds
• Ultra-compact, single-LED form factor
• Triple function: high-power white main beam, high-power red main beam, and low-power red accent light
• Pin-fin heatsink design, for superior thermal dissipation
• Integrated Deutsch-style connector
• Designed, torture-tested and assembled in USA

Overview

Introducing the Stage Series C1R LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed to provide three different lighting functions, in our most compact, versatile package yet. The C1R features a high-power white main beam, a high-power red main beam, and low-power red accent light. Thanks to its compact size, the C1R can be mounted virtually anywhere on your car, truck, motorcycle, or UTV, including spots where larger LED pods won't fit.

Triple Function. The Stage Series C1R LED pod features a cool white main beam, along with a high-power red main beam and low-power red accent light that can be activated independently. The C1R was designed to serve as a high-power reverse light along with your factory reverse lights, a 4th brake light when your brakes are applied, and a secondary running light with your tail lights.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series C1R collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series C1R serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SSC1 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Output. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, scene lighting, or for trailers and roof racks.

Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series C1R Pods.

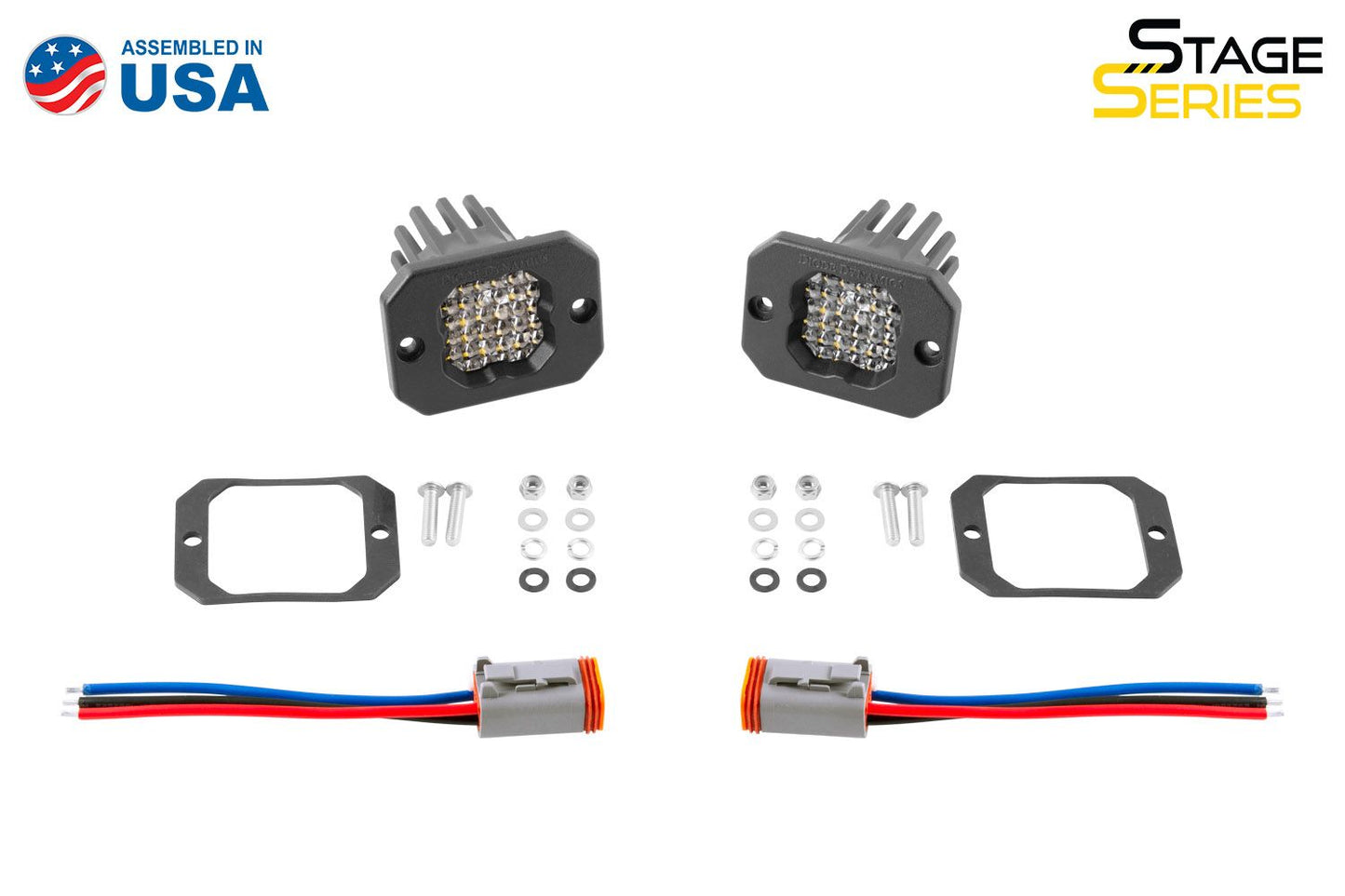

Simple connections. All Stage Series C1R LED pods feature a custom-molded DT-type Deutsch-style connector on the back, and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red, the red wire powers the white main beam, the blue wire powers low-power red, and the black wire is ground.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Snap-On Covers. We offer snap-on covers for your Stage Series C1R Pods. These covers are available in a variety of colors and keep your SSC1 Pod clean and protected from dirt, dust, or whatever else the road throws your way! Please check your local laws and regulations for aiming, installation, and applicability.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
