SSC2 White Sport Standard LED Pod (pair)
SSC2 White Sport Standard LED Pod (pair)
SKUDD6387P
Couldn't load pickup availability
Features
- Modern TIR optics for the highest intensity on the market
- Backlighting available in amber or red
- Durable powdercoated aluminum construction
- Integrated Deutsch-style connector
- Pin-fin heatsink design
- Designed, torture tested and assembled in USA
Overview
Introducing the Stage Series 2" LED Pod! Featuring higher output intensity than any other 2” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series 2" collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series 2" serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series 2" is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! Click here to learn more: Beam Pattern Comparison Video.

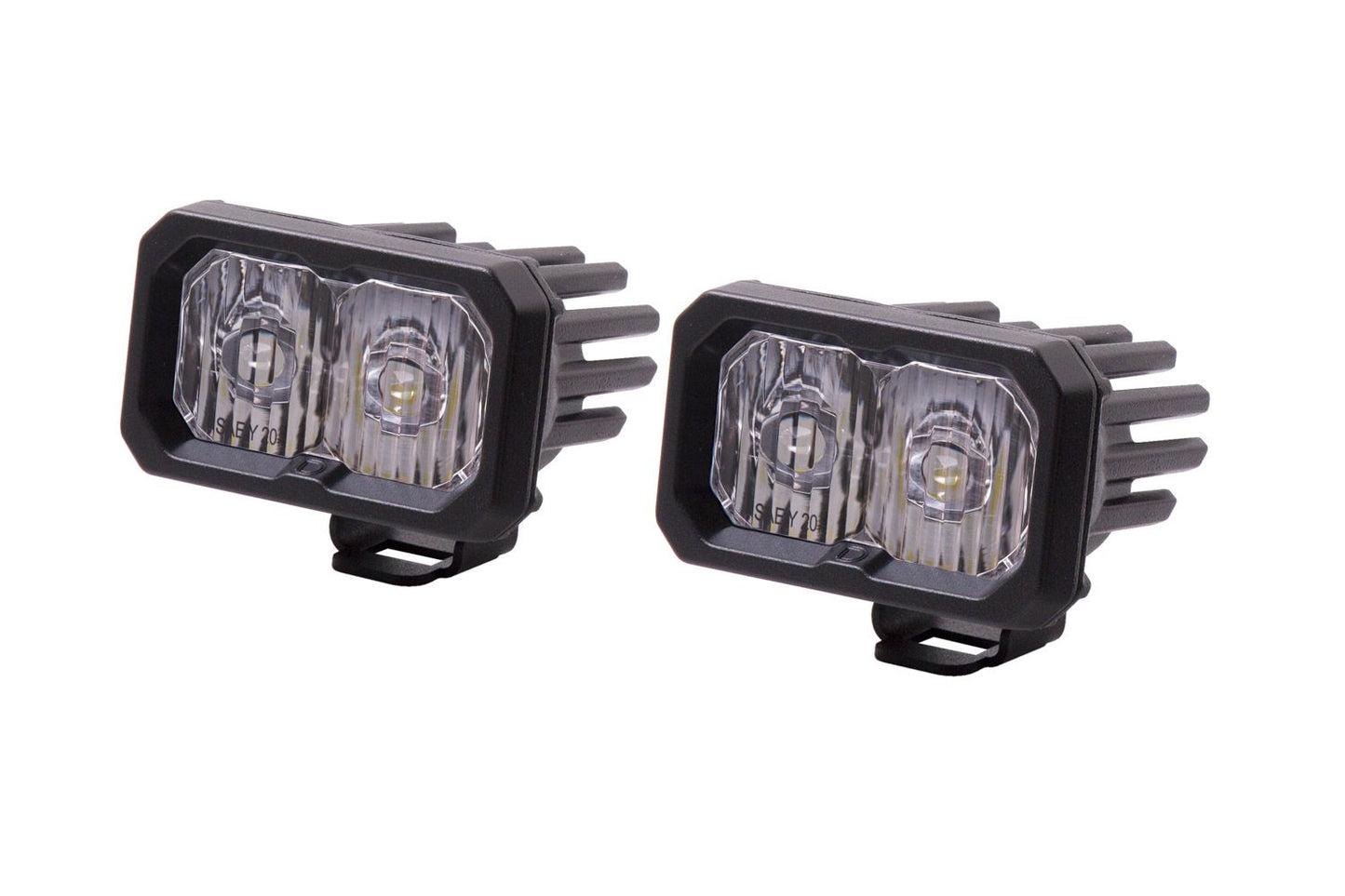

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

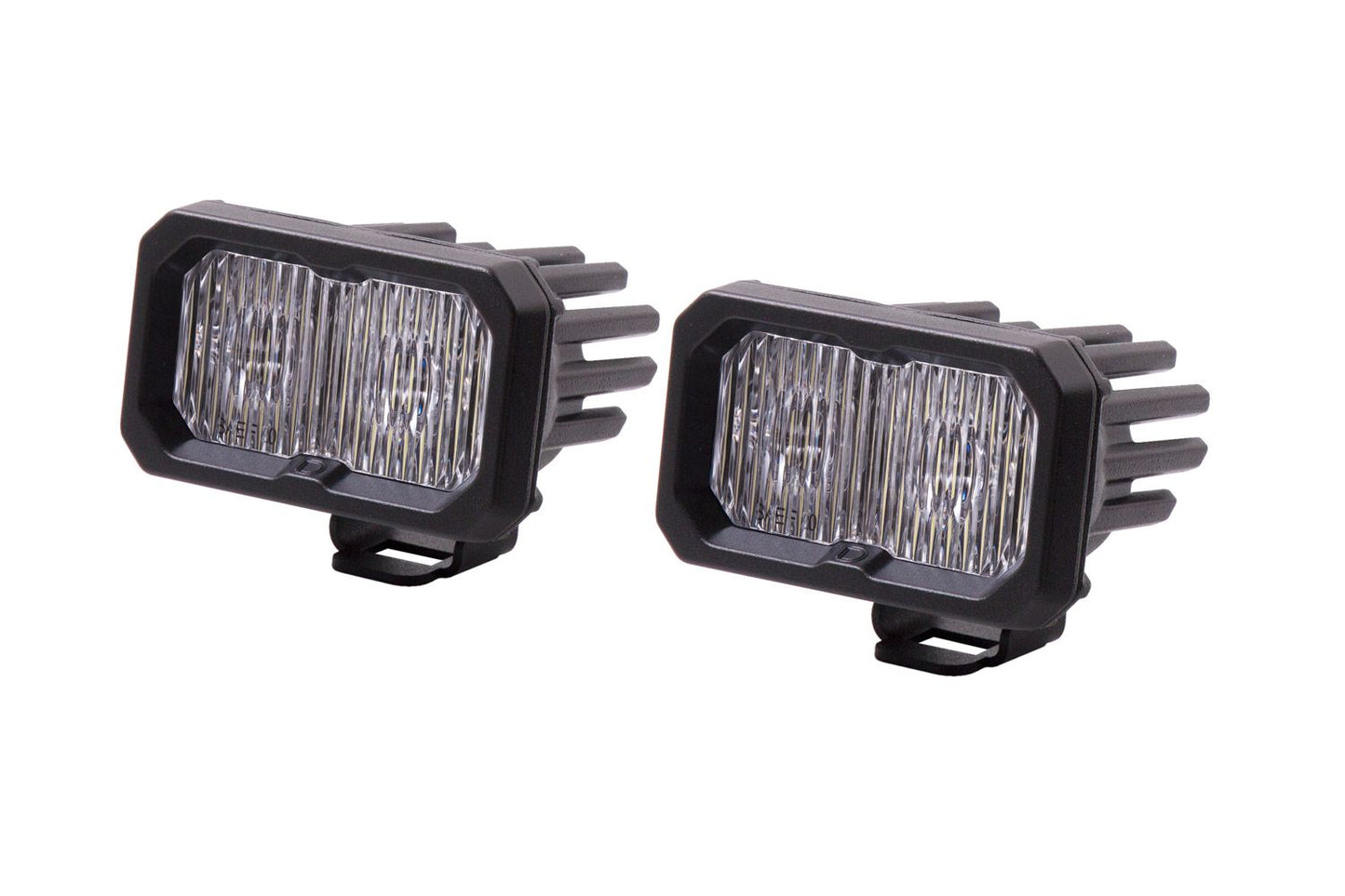

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

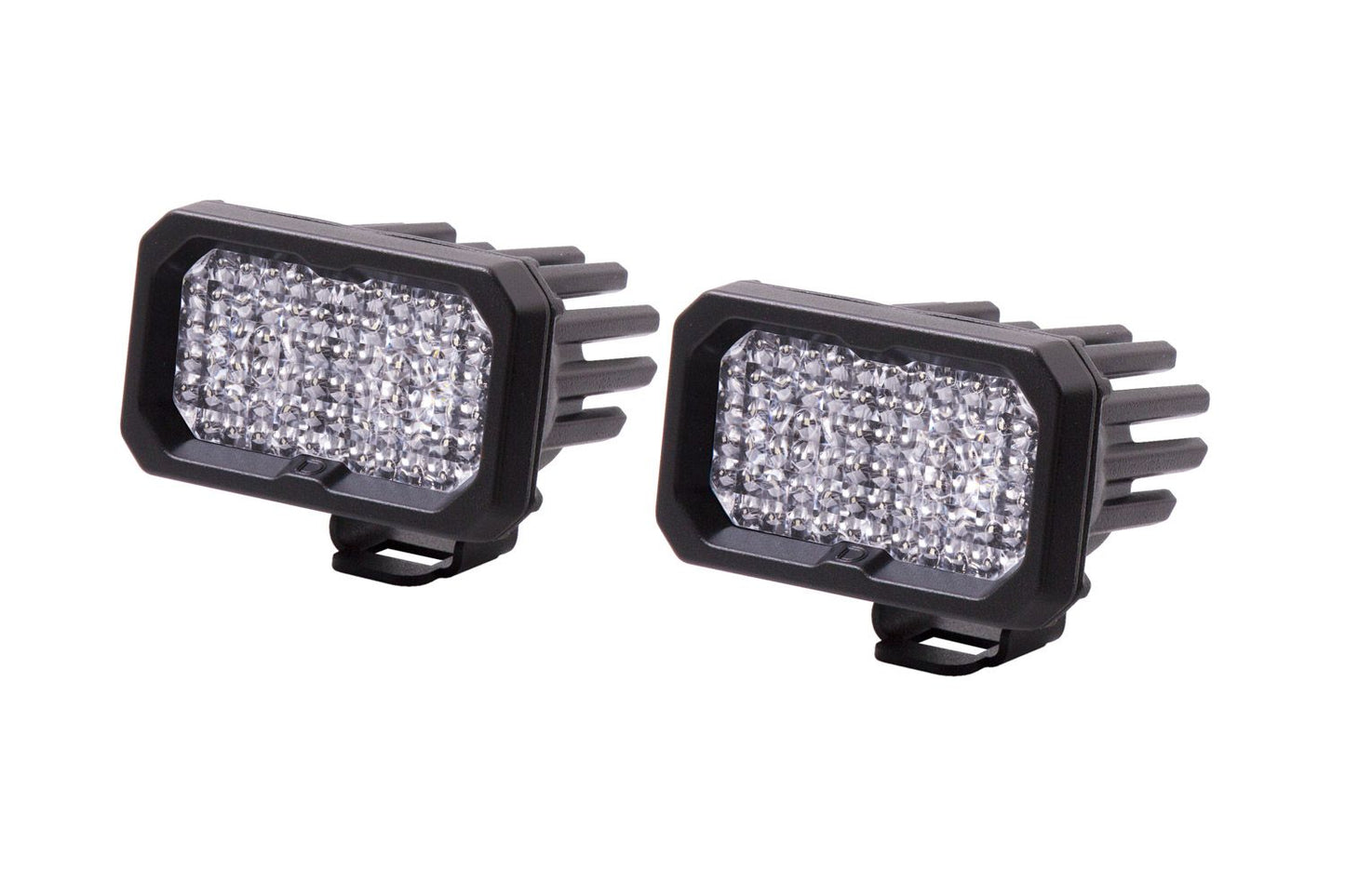

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

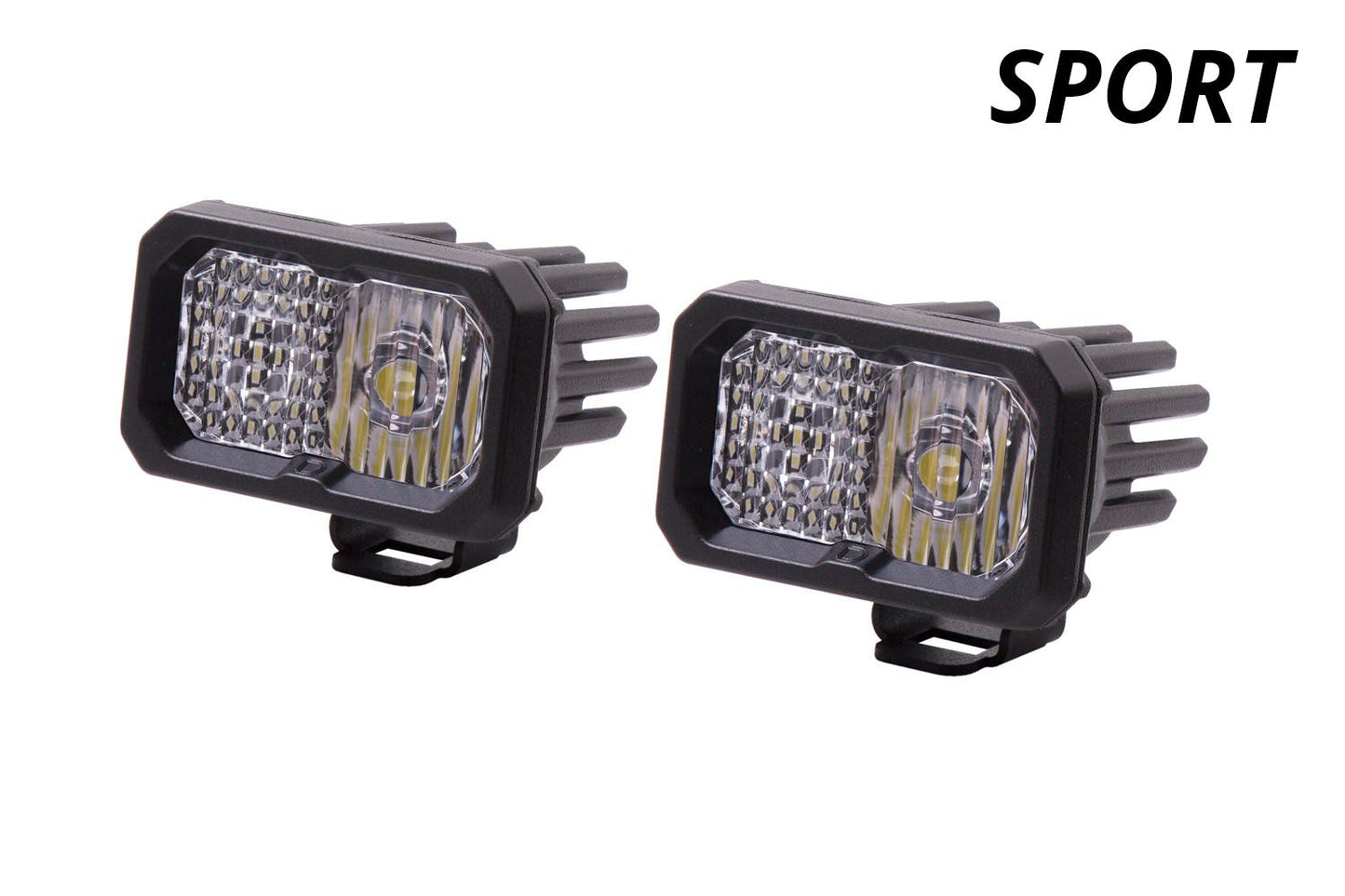

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

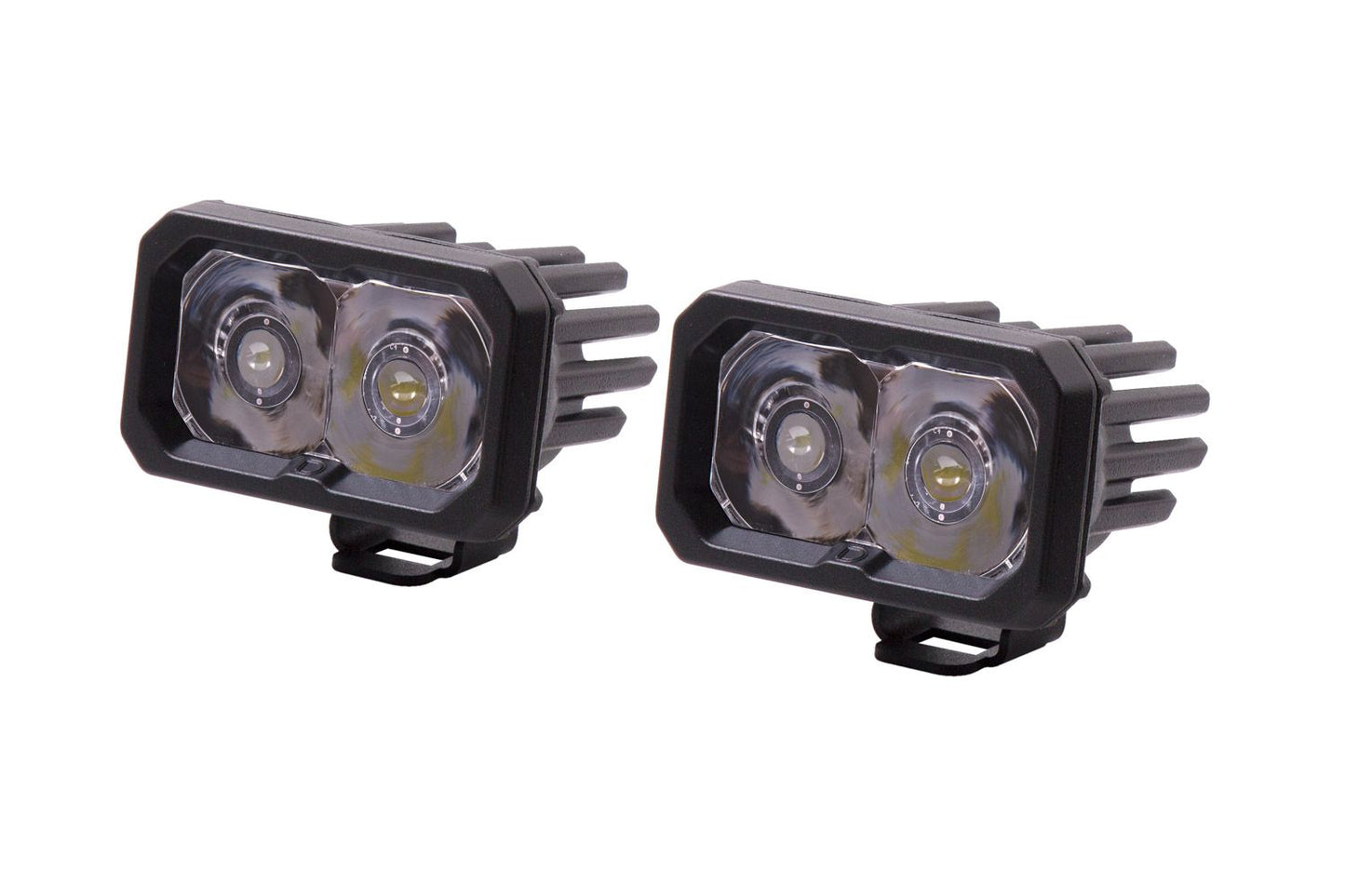

Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 6-degree beam of light, perfect for directing light far into the distance.
Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. For states that require them, we also offer snap-on covers for your Stage Series 2" Pod. These covers are available in a variety of colors and keep your Stage Series 2" Pod clean and protected from dirt, dust, or whatever else the road throws your way! Please check your local laws and regulations for aiming, installation, and applicability.
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The Stage Series 2" Yellow LED Pod can be found here. We also offer replacement lenses that allow you to change the color or optic of your Stage Series 2" Pods.
Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information or click here.
Backlight Functionality. The Stage Series 2" LED Pod includes a distinctive backlight feature, in your choice of amber or red. The SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Simple connections. All Stage Series 2" LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Heavy Duty Dual Output 4-Pin Harness can be used to power up to four Stage Series 2" pods.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
- Two (2) Stage Series 2" LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets and hardware
Specifications
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| Driving Sport | 37,500 cd | 375 lux | 871 lm | 1,130 lm | 6000K White |
| Driving Pro | 59,000 cd | 590 lux | 1,988 lm | 2,898 lm | 6000K White |
| Flood Sport | 375 cd | 4 lux | 871 lm | 1,130 lm | 6000K White |
| Flood Pro | 700 cd | 7 lux | 1,988 lm | 2,898 lm | 6000K White |
| Fog Sport | 5,000 cd | 50 lux | 871 lm | 1,130 lm | 6000K White |
| Fog Pro | 8,500 cd | 85 lux | 1,988 lm | 2,898 lm | 6000K White |
| Combo Sport | 16,000 cd | 160 lux | 871 lm | 1,130 lm | 6000K White |
| Combo Pro | 27,000 cd | 270 lux | 1,988 lm | 2,898 lm | 6000K White |
| Spot Sport | 91,000 cd | 900 lux | 871 lm | 1,130 lm | 6000K White |
| Spot Pro | 97,000 cd | 970 lux | 1,988 lm | 2,898 lm | 6000K White |
The following part numbers are included with this listing:
| SKU | Price | Name | Weight | Driver | Components |
|---|---|---|---|---|---|
| DD6399P | ₹23,999 | SSC2 Sport White Spot Standard RBL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6398P | ₹23,999 | SSC2 Sport White Spot Standard ABL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6394P | ₹23,999 | SSC2 Sport White Flood Standard RBL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6393P | ₹23,999 | SSC2 Sport White Flood Standard ABL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6389P | ₹23,999 | SSC2 Sport White Combo Standard RBL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6388P | ₹23,999 | SSC2 Sport White Combo Standard ABL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6385P | ₹23,999 | SSC2 Sport White Fog Standard ABL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) | |
| DD6382P | ₹23,999 | SSC2 Sport White Driving Standard ABL (pair) | 2.97 lbs | HM0104 SSC2 Pod Bracket (Universal), WP0076 Deutsch 4-Pin DT 10cm Female 4-Wire Pigtail (one) |
