LED Sidemarkers for 2015-2023 (EU/AU) Ford Mustang Red (pair)

LED Sidemarkers for 2015-2023 (EU/AU) Ford Mustang Red (pair)

M.R.P. Rs. 11,999
M.R.P. Rs. 11,999
Sale
Lens Color: Red

SKUDD5072
In-stock items are delivered within 5–10 business days. For orders containing both in-stock and pre-order items, the entire order will be shipped together based on the pre-order delivery timeline of 6–8 weeks.
View full details
Description
Specification
Part Numbers
Q&A
Installation

Features

  • Modern LED replacements for factory sidemarkers
  • Increased output, with unique styling
  • OEM-grade retroreflector optics
  • Available in red, clear, or smoked lens options
  • Engineered and assembled in USA

Overview

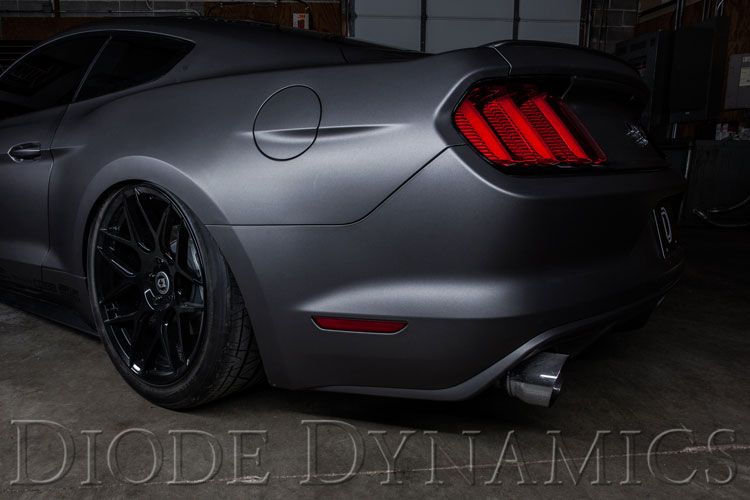

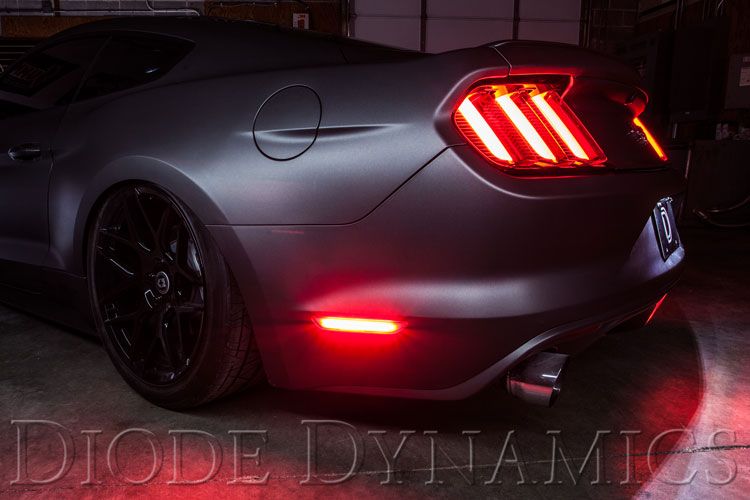

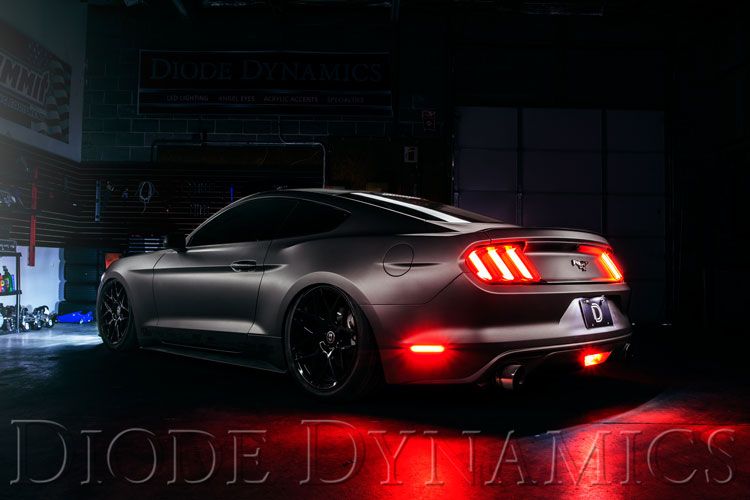

Upgraded Styling. If you're looking to give your EU/AU Mustang an upgrade in styling and appearance, this is the perfect way to do it! From the factory, the EU/AU Mustang has reflectors that do not light up. With the included OEM harness, you'll be able to upgrade your sidemarkers to illuminate with hundreds of LEDs, for a modern and unique appearance. Choose from three lens color options to match your vehicle or preference.

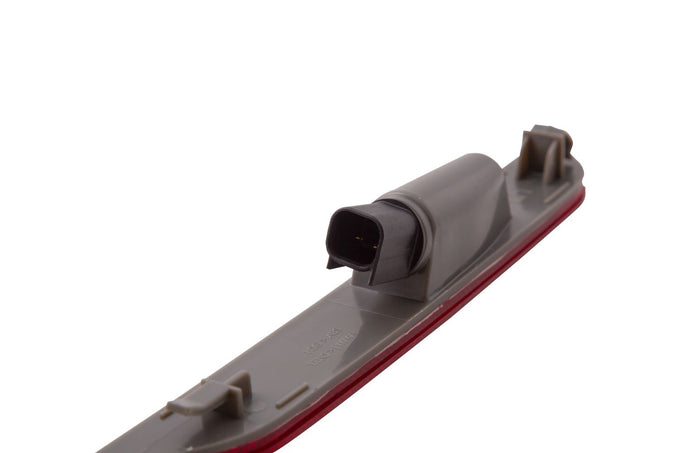

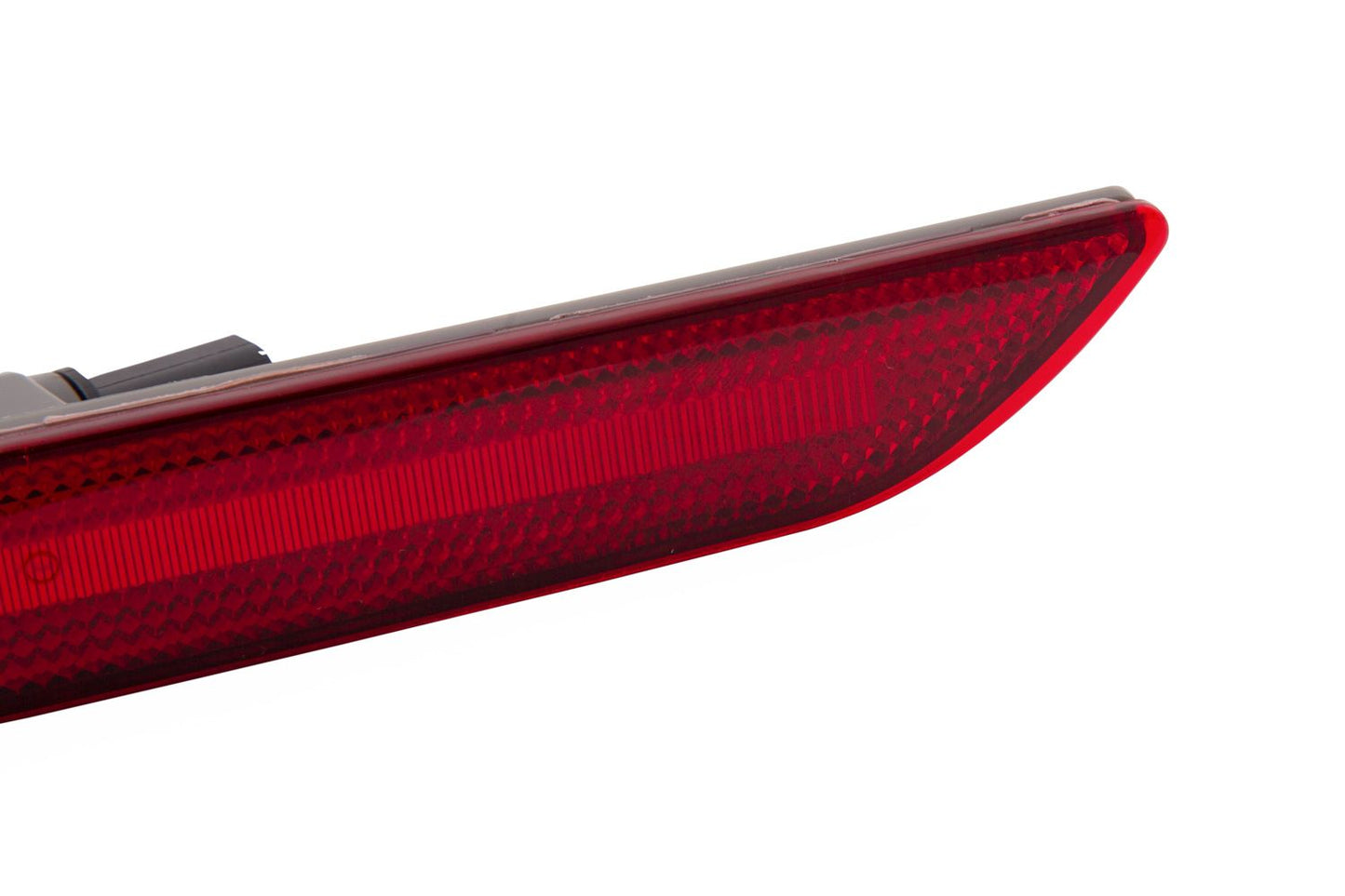

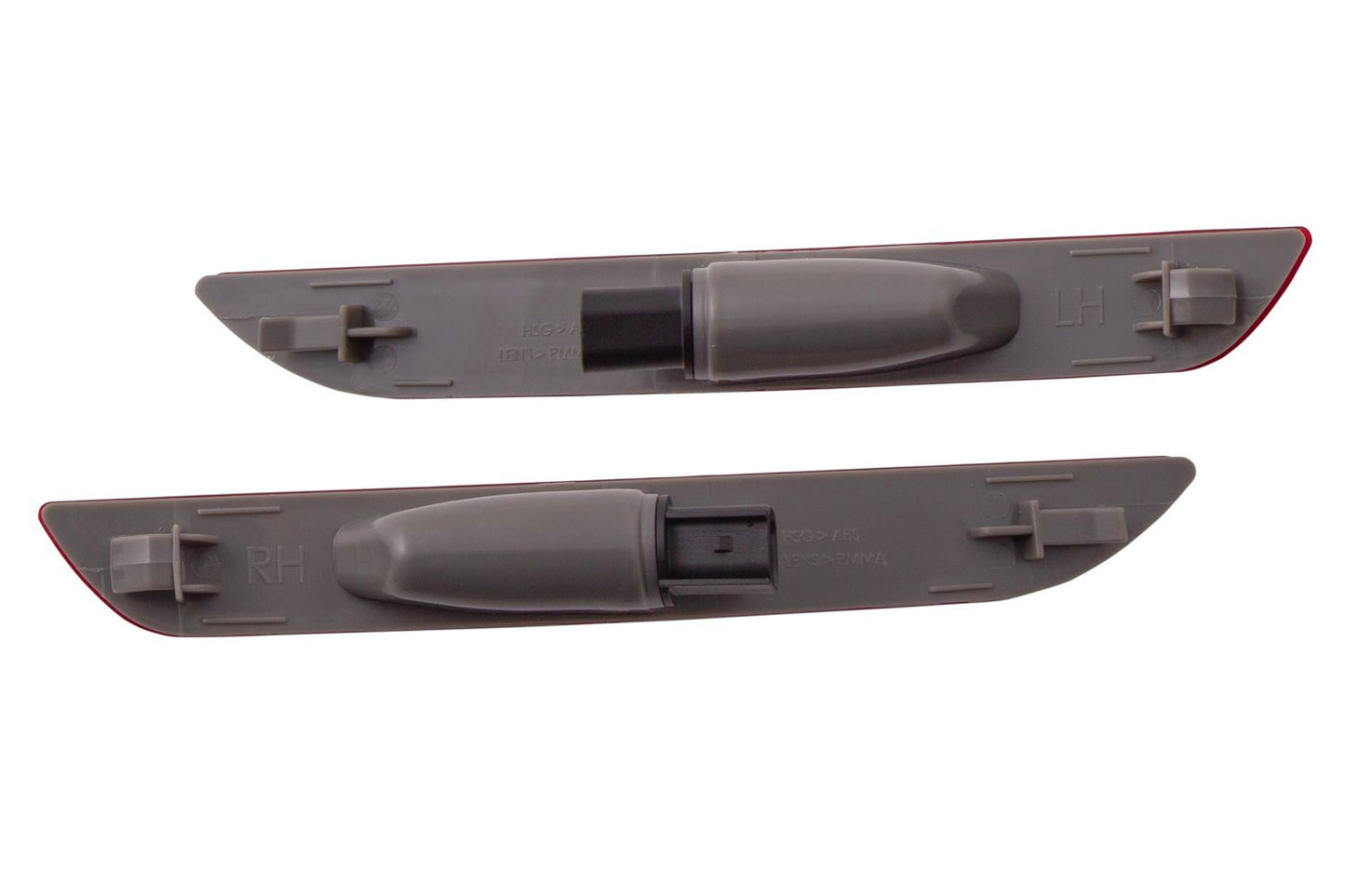

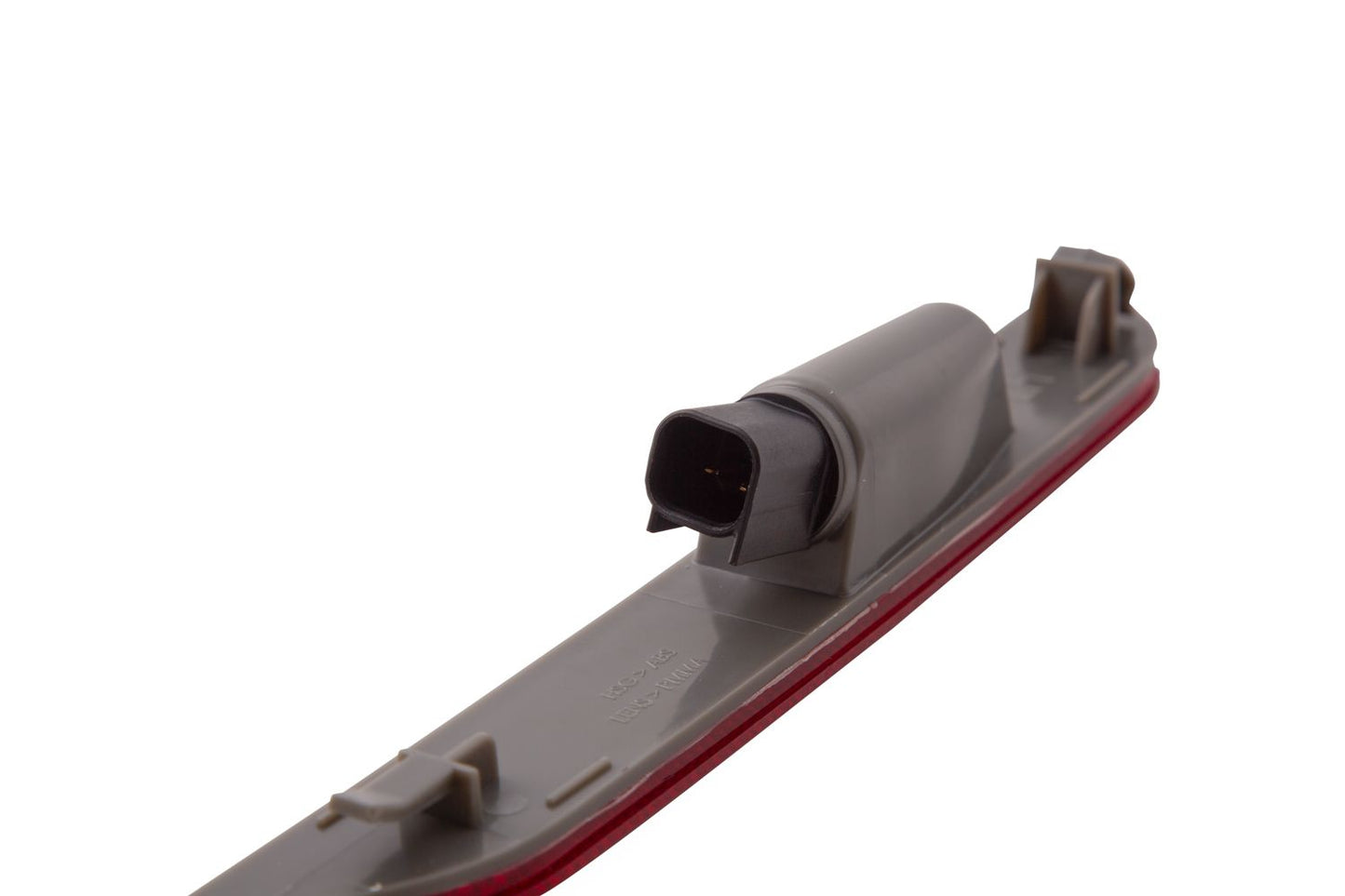

OEM Grade. Unlike other sidemarkers on the market, Diode Dynamics lamps use OEM-grade retroreflector optics, which provide the required reflective safety and a clean, premium appearance when off, unlike "diffuser" or plain flat lenses without any reflective features. The units themselves are designed directly from OEM CAD data for a perfect fit, and the connector plugs right into the factory socket. Click here to learn more: 2015+ Ford Mustang LED Sidemarker by Diode Dynamics video.

Reliability. These LEDs are designed with newer constant-current circuitry and transient voltage protection. These features, found in factory-installed lighting components, protect the circuit over time, ensuring years of flicker-free performance.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Options

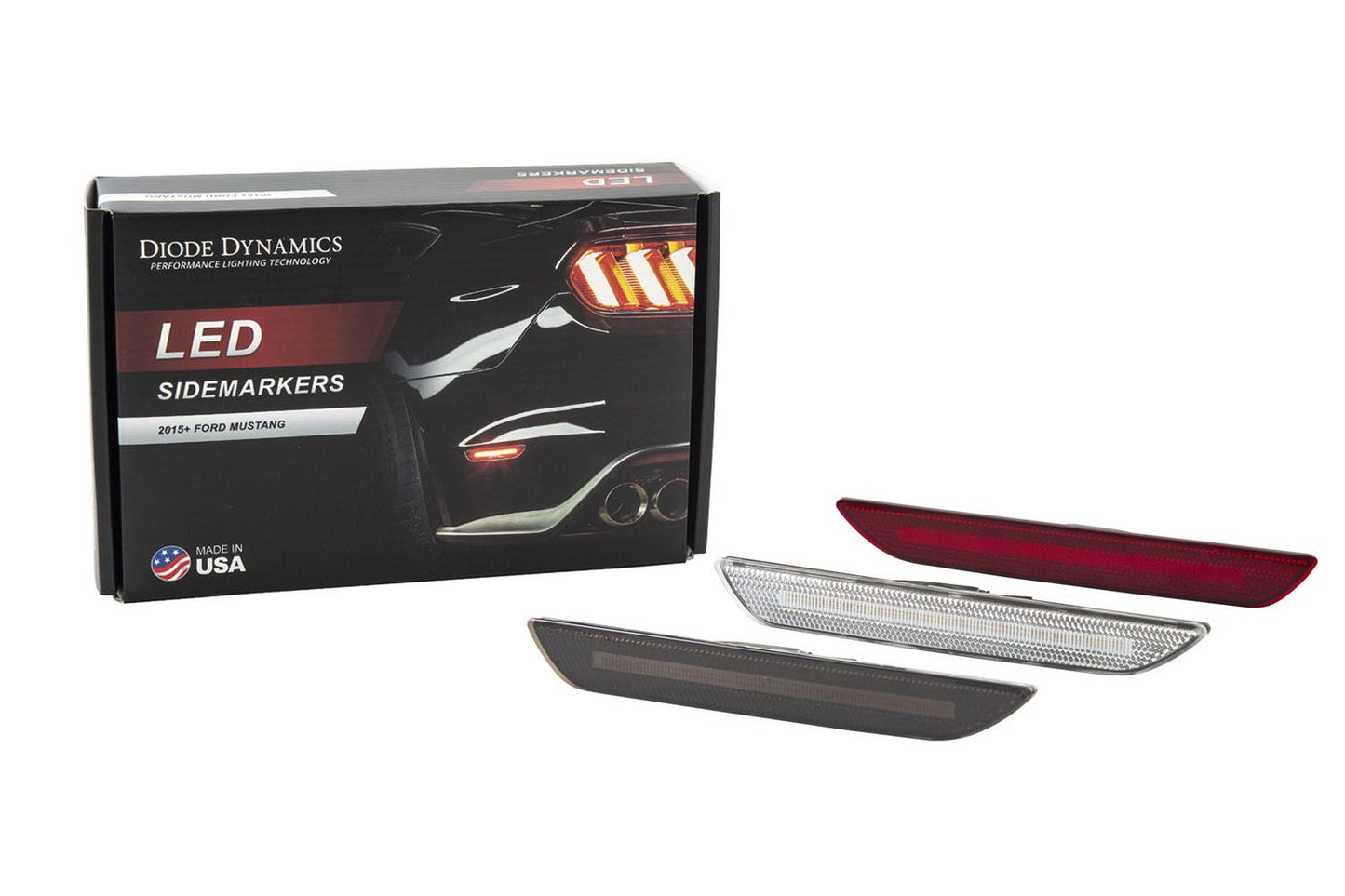

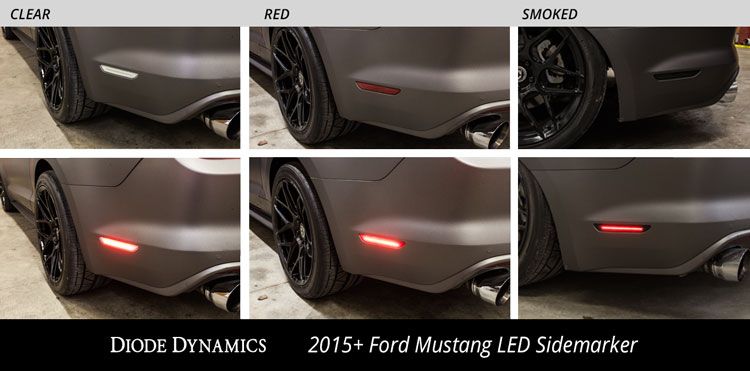

All sidemarkers illuminate in bright red, but there are three colors of lenses. Choose the one that fits your style!

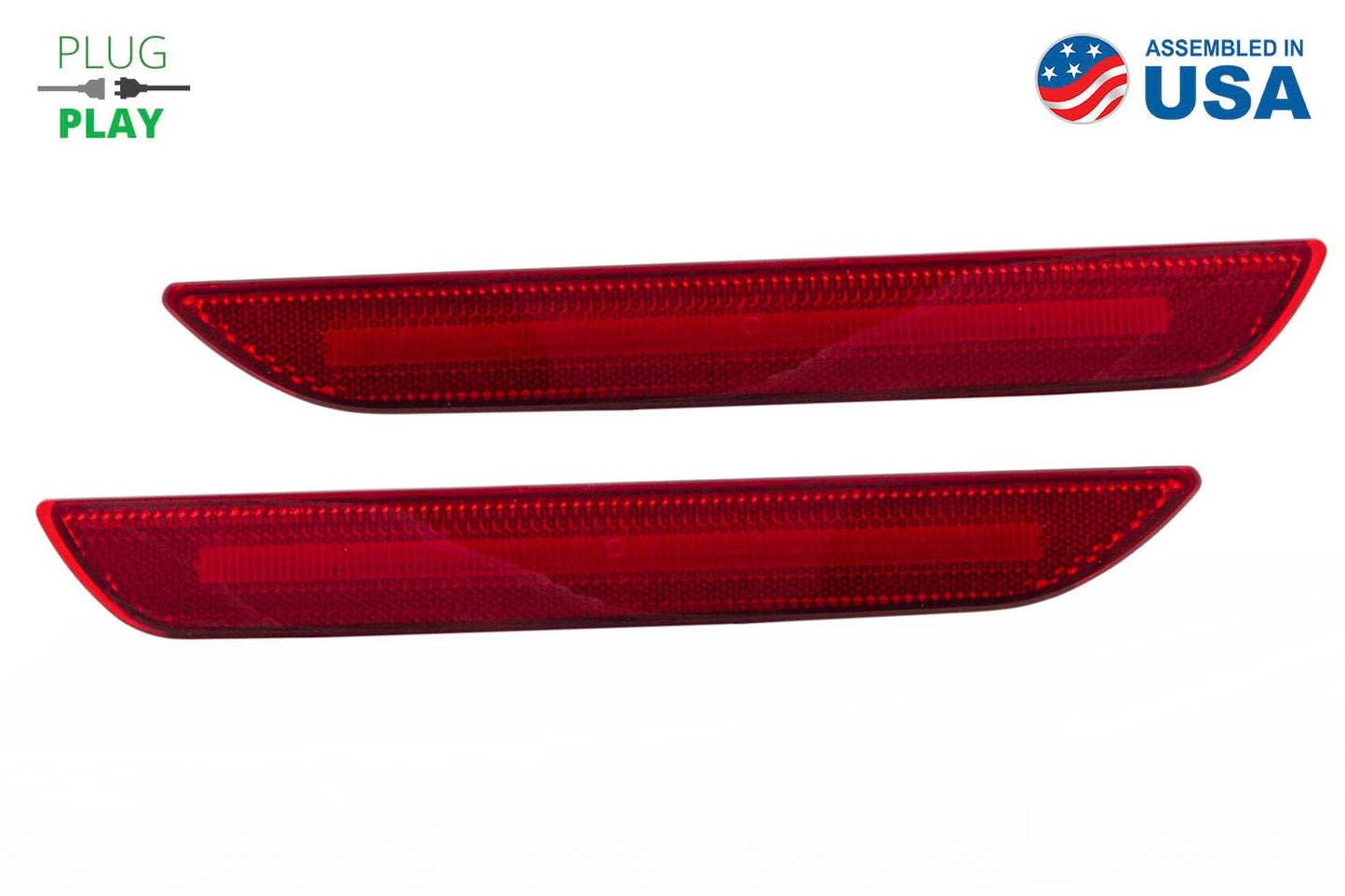

Red: Also called OEM, these match your original, and are DOT/SAE compliant in both illumination and lens color.

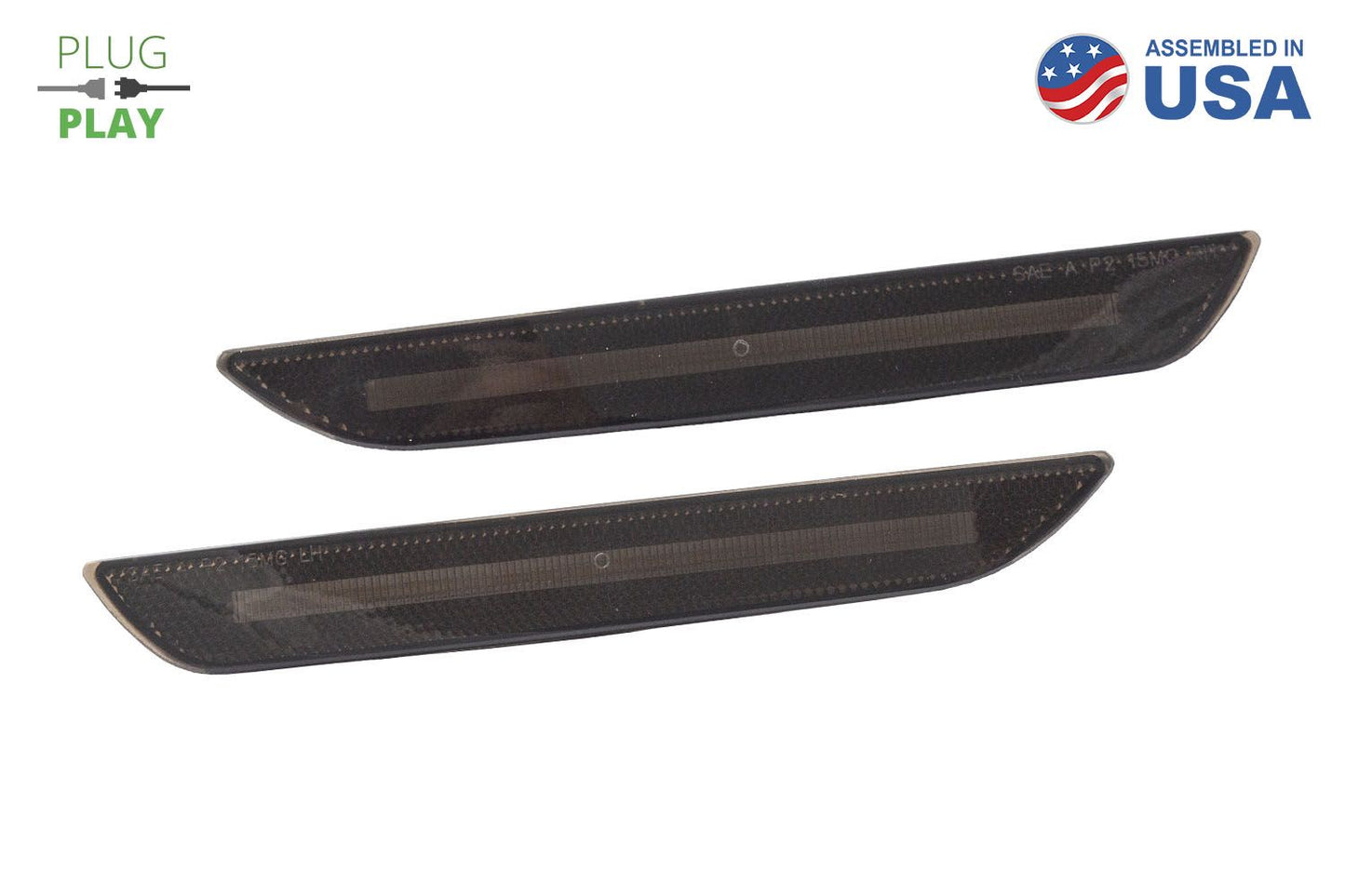

Smoked: A dark appearance, great on black and grey vehicles. (May not meet compliance requirements in your region.)

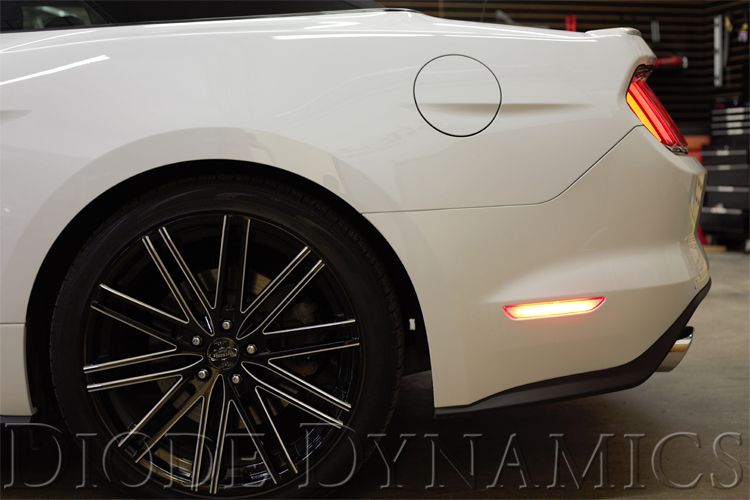

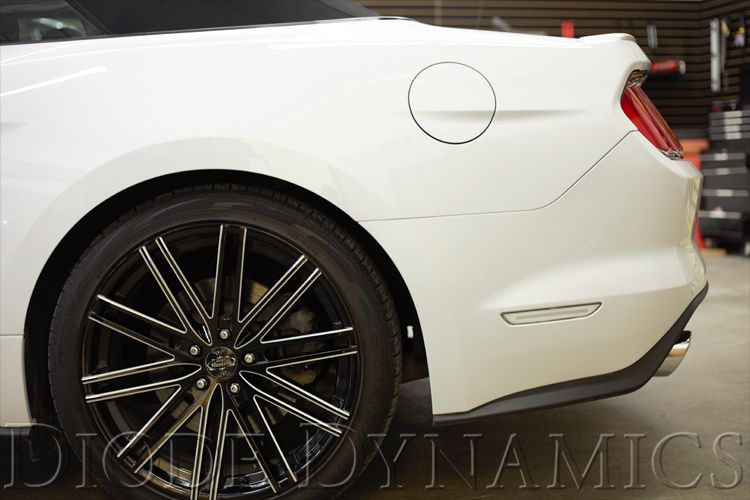

Clear: Blends nicely on white and silver. These are clear in color, but still have the retroreflector optics. (May not meet compliance requirements in your region.)

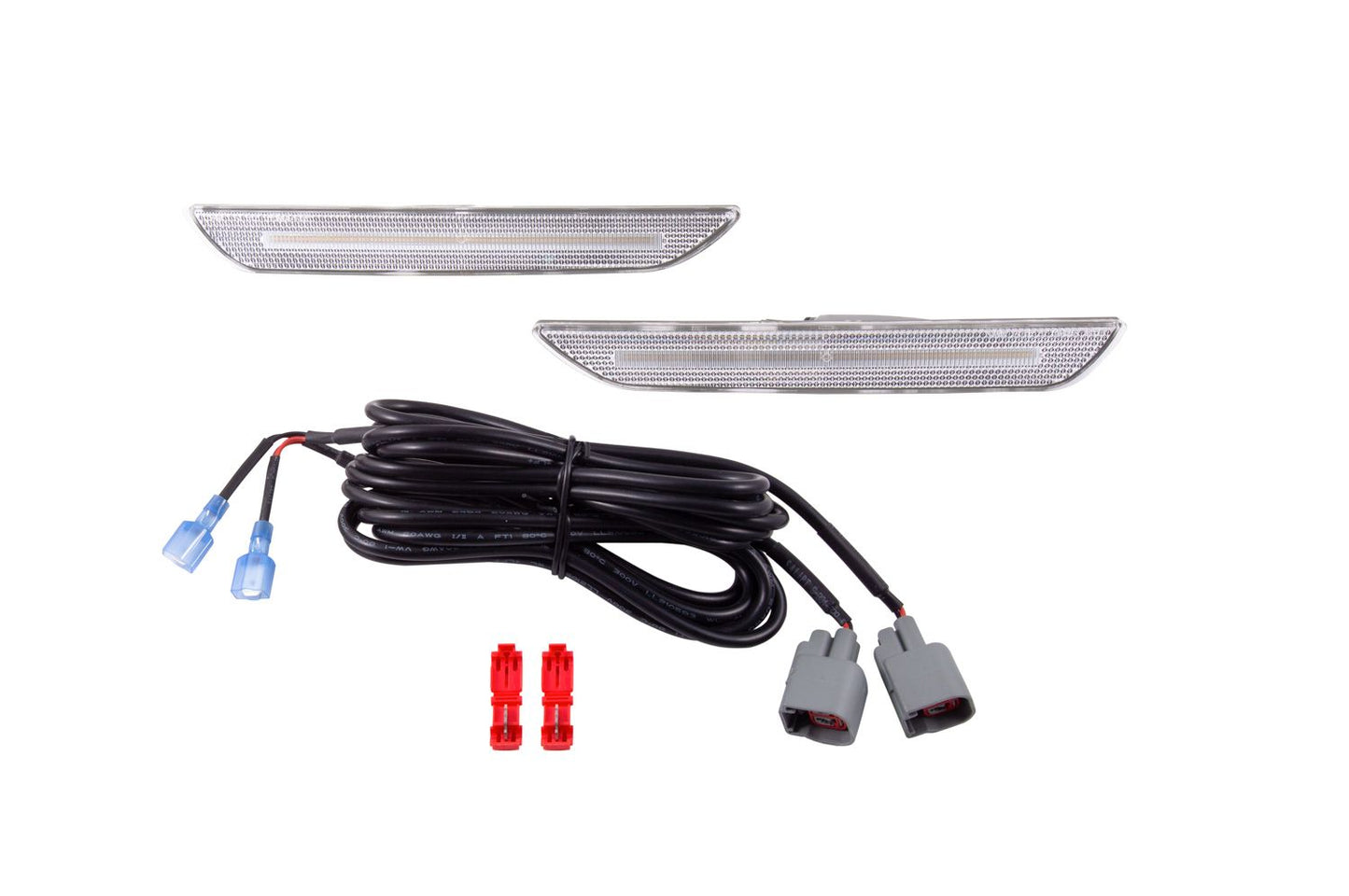

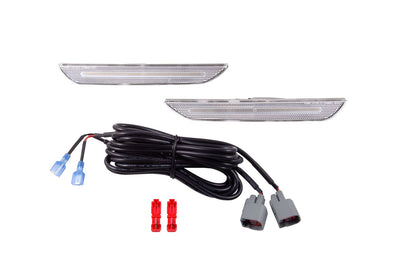

In the Box:
  • Two (2) LED sidemarkers
  • One (1) wiring harness with OEM connectors
  • Two (2) T-taps to tap the factory parking light signal
Quantity: Two (2)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Make: Ford
Model: Mustang EU/AU
Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

Specifications

Power (watts): 2.3
Operating Voltage: 9-16V
Current (amps @ 13.2V): 0.18
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Mini SMD
Connector(s): OEM-Size Plug and Play, T-Tap Inputs
Driver Features: Internal, Constant Current
Materials: ABS Base, PMMA Lens
Make: Ford
Model: Mustang EU/AU
Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

What's Included

100% Satisfaction Guarantee

The following part numbers are included with this listing:

SKU Price Name Weight Driver Components
DD5072 ₹11,999 LED Sidemarkers for 2015-2023 EU/AU Ford Mustang, Red (pair) 0.73 lbs DD5076 Left Mustang 2015 LED Sidemarker Red (single), DD5077 Right Mustang 2015 LED Sidemarker Red (single), WH0024 Wiring Harness for 2015-2019 Ford Mustang Sidemarkers (EU/AU)
DD5071 ₹11,999 LED Sidemarkers for 2015-2023 EU/AU Ford Mustang, Clear (pair) 0.73 lbs DD5074 Left Mustang 2015 LED Sidemarker Clear (single), DD5075 Right Mustang 2015 LED Sidemarker Clear (single), WH0024 Wiring Harness for 2015-2019 Ford Mustang Sidemarkers (EU/AU)
DD5073 ₹11,999 LED Sidemarkers for 2015-2023 EU/AU Ford Mustang, Smoked (pair) 0.73 lbs DD5078 Left Mustang 2015 LED Sidemarker Smoked (single), DD5079 Right Mustang 2015 LED Sidemarker Smoked (single), WH0024 Wiring Harness for 2015-2019 Ford Mustang Sidemarkers (EU/AU)

  1. Hi, Does the EU version of the rear side marker light up amber? I believe that in EU (at least in Sweden) side markers are not allowed to light up red although they can be red reflectors.
    Also, does the EU version come with the same connector as the North American version? I am needing to convert my Mustangs for use in EU.
    The EU/AU version of this product is the exact same as the USDM model, just with an extra wiring harness to power everything. The LEDs will be red.

  2. I’ve received my LED side marker lights but there was no wiring on my car to use to light it up. Do you know how I can run some wires and the correct plug to it so it works as I wanted it too? Thanks.
    The EU/AU kit comes with the proper wiring to hook the sidemarkers up. If you did not receive the wiring and you purchased this kit, please contact us and we can help get you the proper wiring!

  3. I have a 2016 5.0 V8 GT (Right hand drive) UK model Mustang. The car currently has the orange reflectors on the rear bumber that do not light up. I want to order a pair of the smoked lights so I have a few q's:
    1) Will these fit without having to cut into the bumper (I'm not sure if the UK reflectors are just stick on's as opposed to push and clip in) ?
    3) Are these legal in the UK?
    1.) Yes, these will fit without modifying the bumper, they are the push and clip in kind.
    2.) As far as we know these should be legal in the UK. Of course always check local laws and regulations relating to automotive lighting before purchasing.

  4. As the Au model does not have wiring, is this include with the lights,? The pictures only show short'tails'.
    It is included with these lights for the EU/AU listing.

  5. I just ordered a EU-Bullitt. And this car needs clear side markers for sure. My Problem: In Germany it is not allowed to light up the side markers. So, do you have the clear markers für the EU-Version without LED and elctrics too?
    Unfortunately we do not; sorry about that!

  6. I imported a US Mustang 2015 to Europe.
    What is the difference between the US and EU/AU version of these side markers? Only the electrics, or also the shape? In other words... Will these fit my US Mustang?
    If you have a USDM Mustang, the Sidemarkers will be plug-and-play. Since the EU/AU Mustang's Sidemarkers do not have any bulbs illuminating them, our EU/AU Mustang Sidemarkers are sold with wiring to tap for power!

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Installation Guide: Click to download
