Heavy Duty Single Output 2-Pin Offroad Wiring Harness

Heavy Duty Single Output 2-Pin Offroad Wiring Harness

M.R.P. Rs. 4,349
M.R.P. Rs. 4,349
Sale

SKUDD4031
In-stock items are delivered within 5–10 business days. For orders containing both in-stock and pre-order items, the entire order will be shipped together based on the pre-order delivery timeline of 6–8 weeks.
View full details
Description
Specification
Part Numbers
Q&A
Installation

Features

  • Powers Diode Dynamics Stage Series light bars and LED pods.
  • Connects directly to the battery to power your light.
  • High capacity 14AWG wiring.

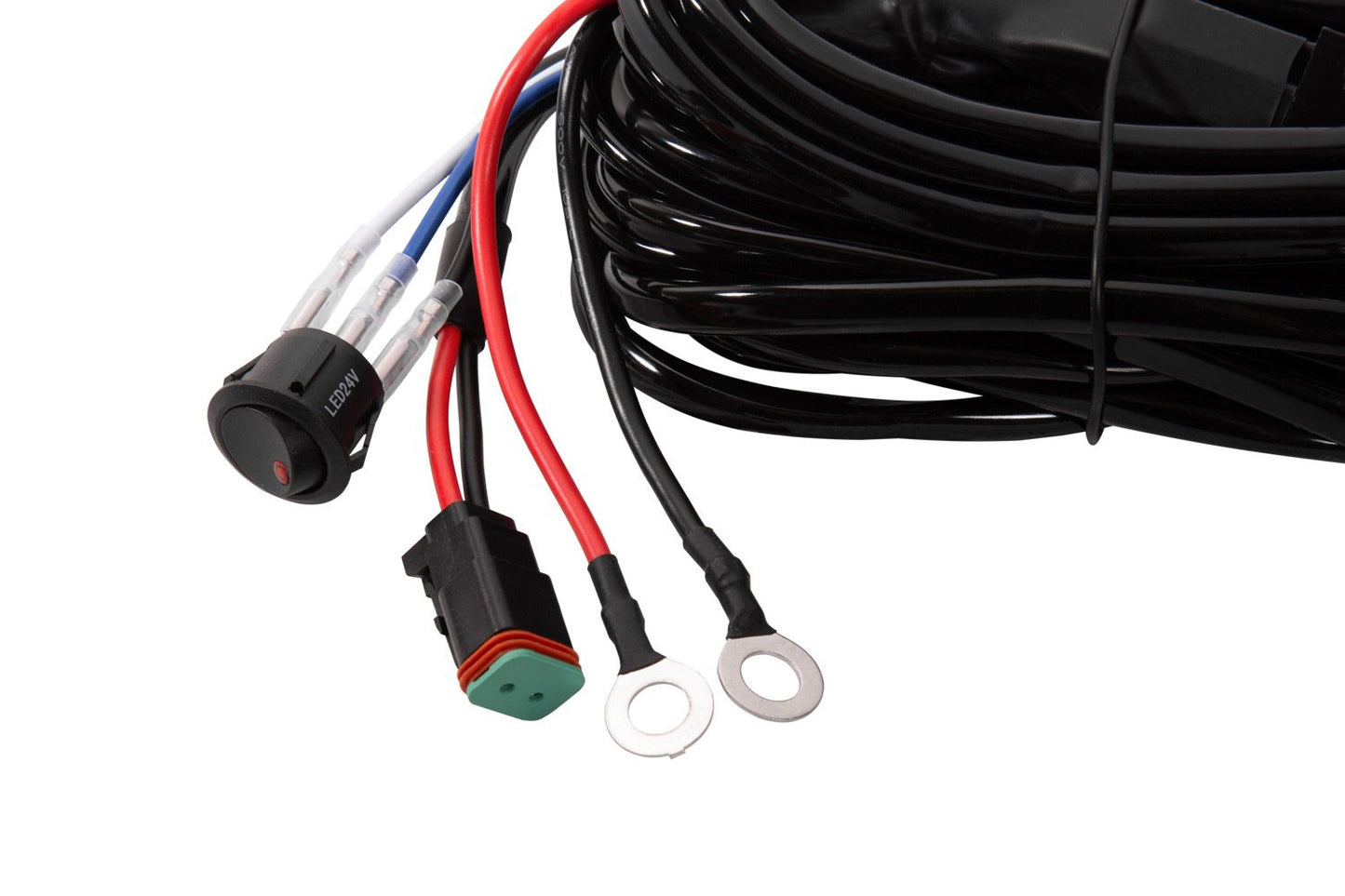

  • Deutsch DT output connector.
  • Black wire sheathing to protect cables.
  • 30A, waterproof fuse and 60 amp, 12V relay to safeguard the electrical systems in your light.

Overview

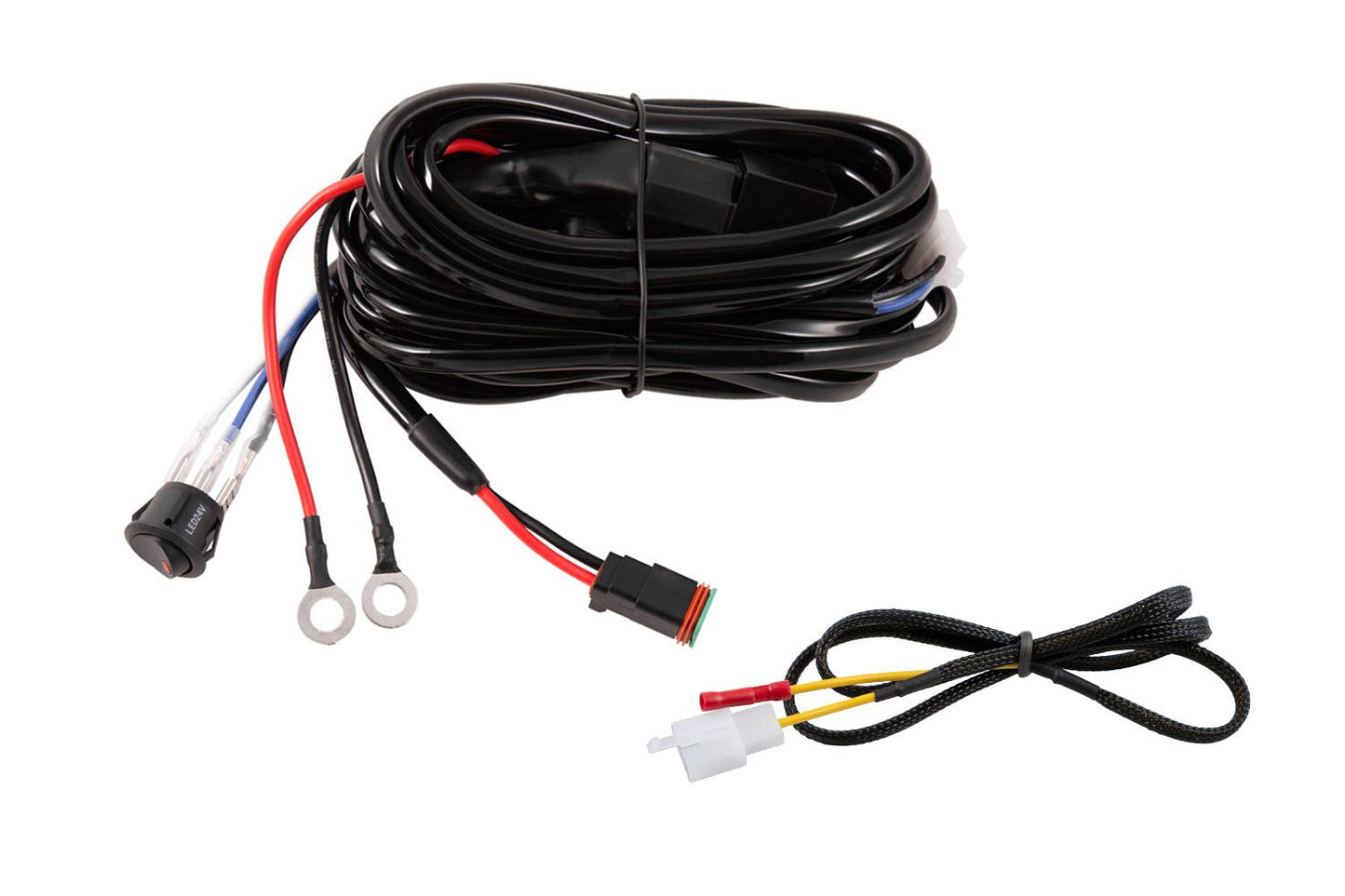

Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

  • SS3 Sport: 1.1A
  • SS3 Pro: 2.7A
  • SS3 Max: 3A
  • SS6 Light Bar: 1.9A
  • SS12 Light Bar: 4.2A
  • SS18 Light Bar: 5.7A
  • SS30 Light Bar: 9.8A
  • SS42 Light Bar: 16A
  • SS50 Light Bar: 18.5A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • One (1) wiring harness
  • One (1) toggle switch
Quantity: One (1)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

This harness is designed to power Diode Dynamics Stage Series light bars and LED pods without backlighting.

NOTE: If you are using this harness in combination with our Stage Series lightbars on a 24V system, you will need to replace the relay with a 24V relay.

Specifications

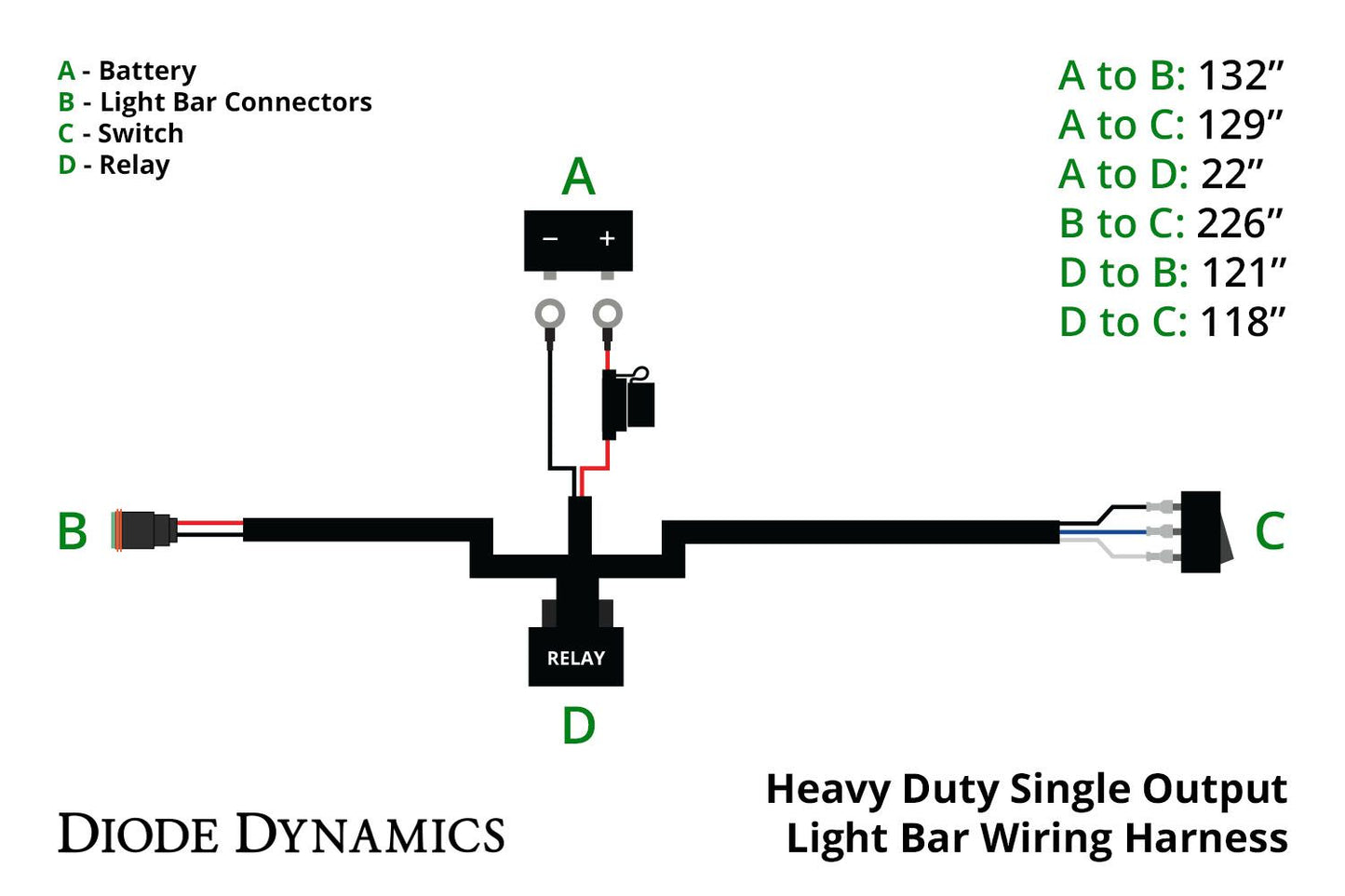

Click HERE to view the full dimensional diagram.

Length (in): 226
Wire Size: 14AWG
Shipped Weight (lb): 1.9

The following part number is shown on this page:

SKU Price Name Weight Driver Components
DD4031 ₹4,349 Heavy Duty Single Output 2-Pin Offroad Wiring Harness 1.9 lbs

  1. Hello,I have dual batteries set up in my truck (12V) and want to have a diode set up on one so it will not discharge unless diode is bypassed.
    Any ideas? Appreciate your input as I am out of ideas .... :)Sam
    We would recommend locating a controller or module specifically for this, as it's not recommended to use a custom part for this due to the high amperage loads.

  2. Can I just connect the aux wire to the high beam socket at the headlight Or does this need to go to a switch ?
    You can run the activation to the high beam or really any 12V wire you want to activate the light(s) with. All the Aux wire is doing is acting as a signal to flip the relay on and off.

  3. Does the Heavy Duty Single Output 2-Pin Offroad Wiring Harness contain a “flyback” or “flywheel” diode in the relay?
    This wire harness does not contain one of those types of diodes.

  4. I have a factory wire that is the trigger wire that is connected to my BCM that goes through my factory switch on gmc. On your heavy duty harness switch, which of the 3 connectors is the trigger wire since I only need to use that one trigger wire.
    Thanks for reaching out! The blue wire on our harness is our "trigger wire" As long as the harness is connected to the terminals on the battery, only the blue wire would need the power to flip the relay and send power through to the rest of the kit. Essentially the blue wire acts as a signal wire in this case. Thank you!

  5. Will the 30” light bar flicker when on?
    None of our light bars will flicker when on.

  6. Is this compatible with the 6 and 12 inch light bars as well? and also which toggle switch does it come with.. is it illuminated and water proof? since i am looking to add this to my ATV.
    The heavy duty harness can be utilized with smaller bars like our 6 or 12 inch units. The harness will come with a basic illuminated toggle switch, that will be weather resistant. We do recommend installing all wiring in a way that will be as much out of the exposed elements as possible for best long-term reliability.

NOTE: The gold spade on the toggle switch should be connected to the black (ground) wire.

Wire Colors (Switch):

  • Relay: Blue
  • Power: White
  • Ground: Black

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Installation Guide: Click to download

https://youtu.be/2xWbibOn6Z0
