Heavy Duty Dual Output 2-Pin Offroad Wiring Harness

Heavy Duty Dual Output 2-Pin Offroad Wiring Harness

M.R.P. Rs. 5,449
M.R.P. Rs. 5,449
Sale

SKUDD4045
In-stock items are delivered within 5–10 business days. For orders containing both in-stock and pre-order items, the entire order will be shipped together based on the pre-order delivery timeline of 6–8 weeks.
View full details
Description
Specification
Part Numbers
Q&A
Installation

Features

  • Powers Diode Dynamics Stage Series light bars and LED pods.
  • Connects directly to the battery to power your light.
  • High capacity 14AWG wiring.
  • Deutsch DT output connector.
  • Black wire sheathing to protect cables.
  • 30A, waterproof fuse and 60 amp, 12V relay to safeguard the electrical systems in your light.

Overview

Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

  • SS3 Sport: 1.1A
  • SS3 Pro: 2.7A
  • SS3 Max: 3A
  • SS6 Light Bar: 1.9A
  • SS12 Light Bar: 4.2A
  • SS18 Light Bar: 5.7A
  • SS30 Light Bar: 9.8A
  • SS42 Light Bar: 16A
  • SS50 Light Bar: 18.5A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

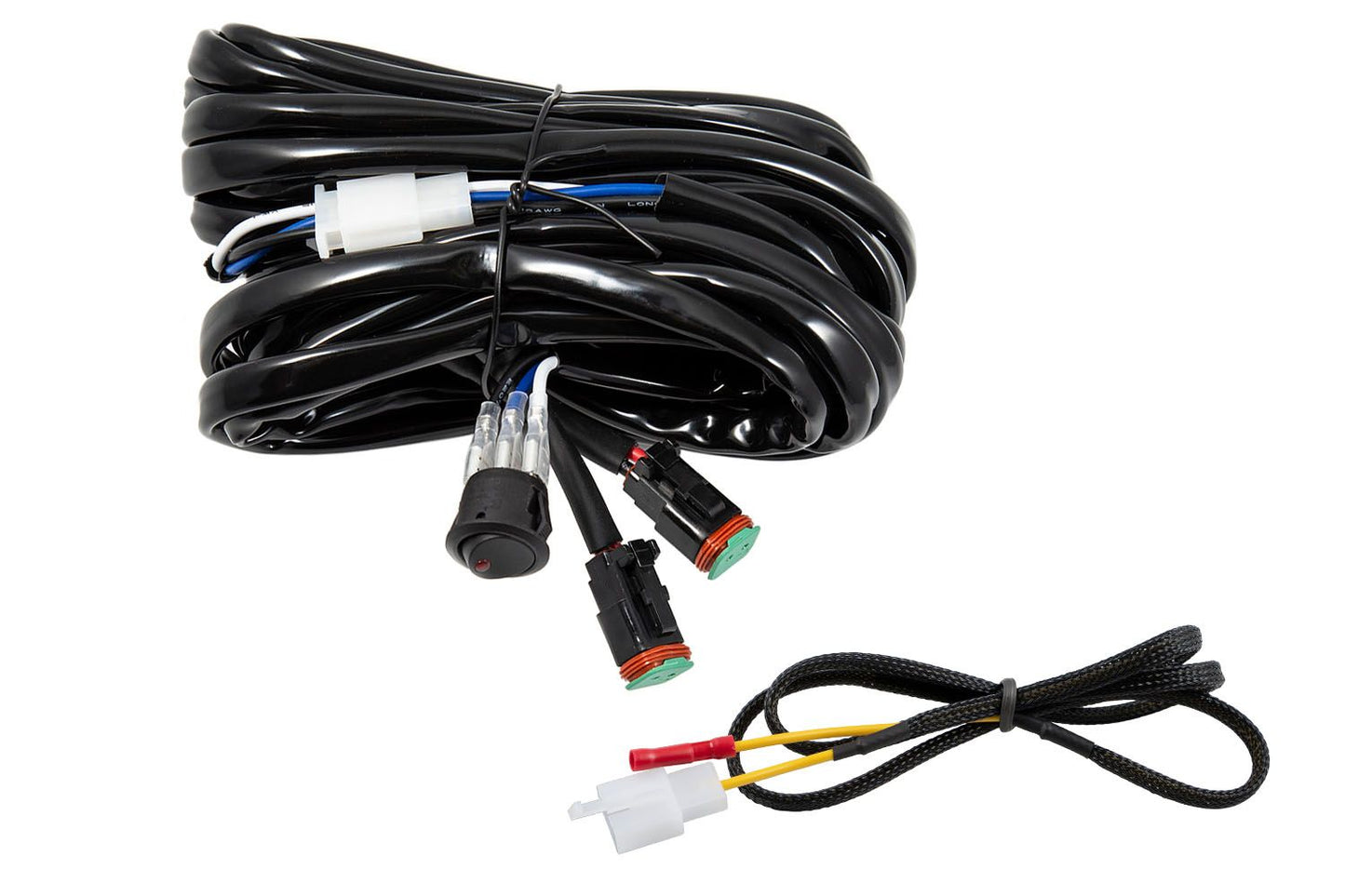

In the Box:
  • One (1) wiring harness
  • One (1) toggle switch
  • One (1) OEM aux switch adapter
Quantity: One (1)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: If you are using this harness in combination with our Stage Series lightbars on a 24V system, you will need to replace the relay with a 24V relay.

Specifications

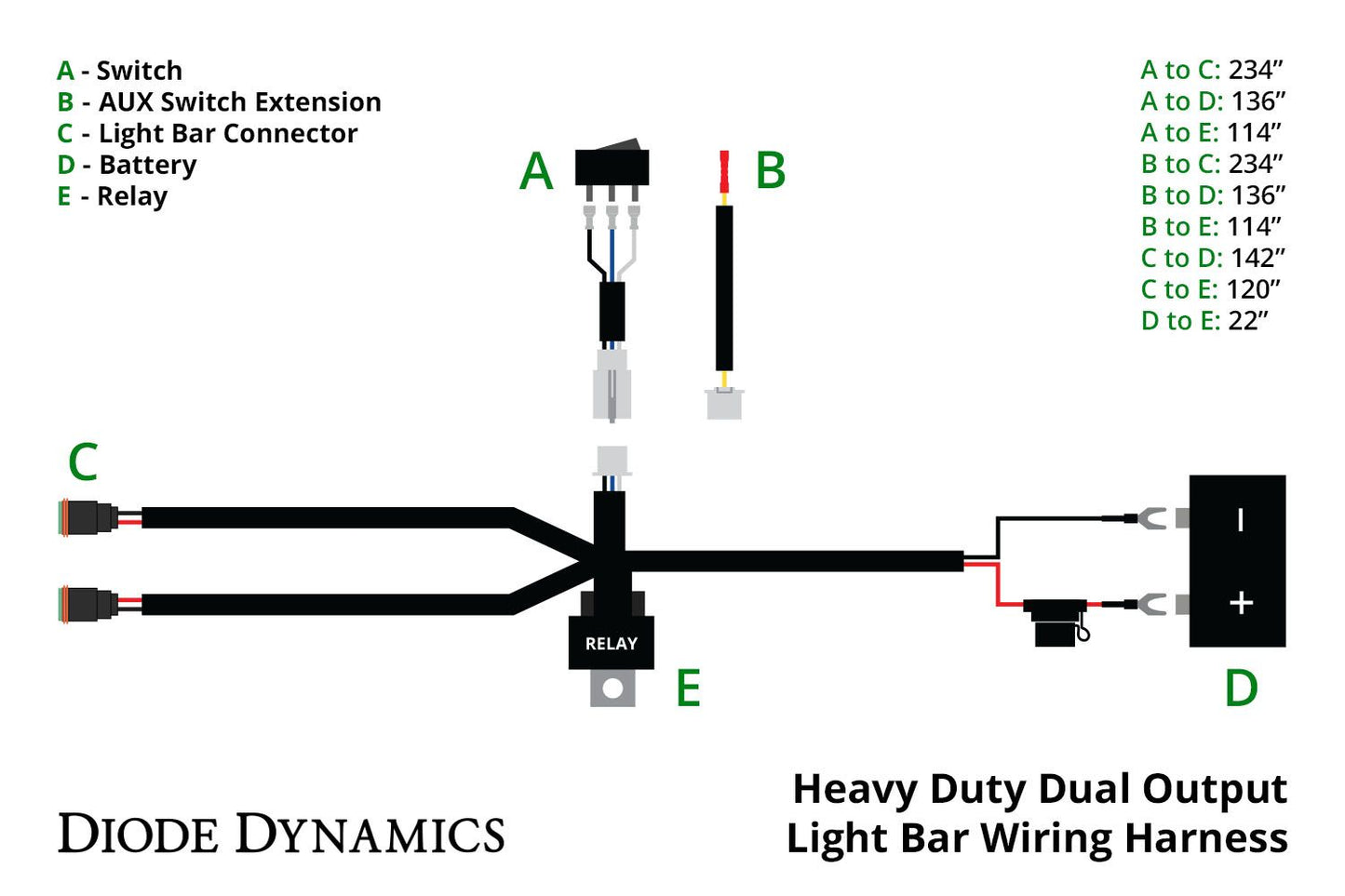

Click HERE to view the full dimensional diagram.

Length (in): 225
Wire Size: 14AWG
Shipped Weight (lb): 2.45

The following part number is shown on this page:

SKU Price Name Weight Driver Components
DD4045 ₹5,449 Heavy Duty Dual Output 2-Pin Offroad Wiring Harness 2.45 lbs

  1. Hey, is the harness made in the USA? Does the warranty for failure come directly to Diode Dynamics? Thanks
    This harness is manufactured by an overseas supplier to our exact specifications. This is backed by a 3 year warranty directly by Diode Dynamics.

  2. Can I wire the SS6 light bar wire harness into the hi.beams instead of using the toggle or aux switch?Installation is on a 2021 Ford Ranger XLT
    For this functionality, you can use an add-a-fuse/fuse tap to power the lightbars off of the factory High Beam fuse location!

  3. Can the SS3 fog lights be intensity controlled?
    The SS3 will be either all on or all off, controlled via the included switch with this harness.

  4. What type of connector is used to connect the switch to the harness, the white one? I have 2 harnesses (1 dual output, 1 single total 13A draw) and would like to use the single switch into a splitter
    The male connector is a Sumitomo MTW 6030-3991 while the Sumitomo MTW 6040-3111 is the female end!

  5. If I am planning on installing (2) Stage Series 3in with backlight on my 2023 F150. I would like to use my upfitter switches. I see that this does come this harness come with the aux adapter but it only has a single wire on the connector on two (for attaching to 2 switches). From the install video it looks like I need a separate adapter with 2 wires to connect.
    You would need one of our 4-Pin harness options to wire up a set of pods with the backlight feature. You can email us at contact@diodedynamics.com or give us a call at (314) 205 3033 from 10 am - 5 pm CST M-F to discuss this further!

  6. Does ss3 max combo has wiring in the box?
    All of our SS3s will include some basic pigtails that you can use to wire in the pod. Within the listing, there should also be an optional wiring harness to make the wiring a bit easier.

NOTE: The gold spade on the toggle switch should be connected to the black (ground) wire.
