Deutsch DT 4-Pin Splitter Wire (one)

Deutsch DT 4-Pin Splitter Wire (one)

M.R.P. Rs. 1,649
M.R.P. Rs. 1,649
Sale

SKUDD4100
In-stock items are delivered within 5–10 business days. For orders containing both in-stock and pre-order items, the entire order will be shipped together based on the pre-order delivery timeline of 6–8 weeks.
View full details
Description
Specification
Part Numbers
Q&A
Installation

Features

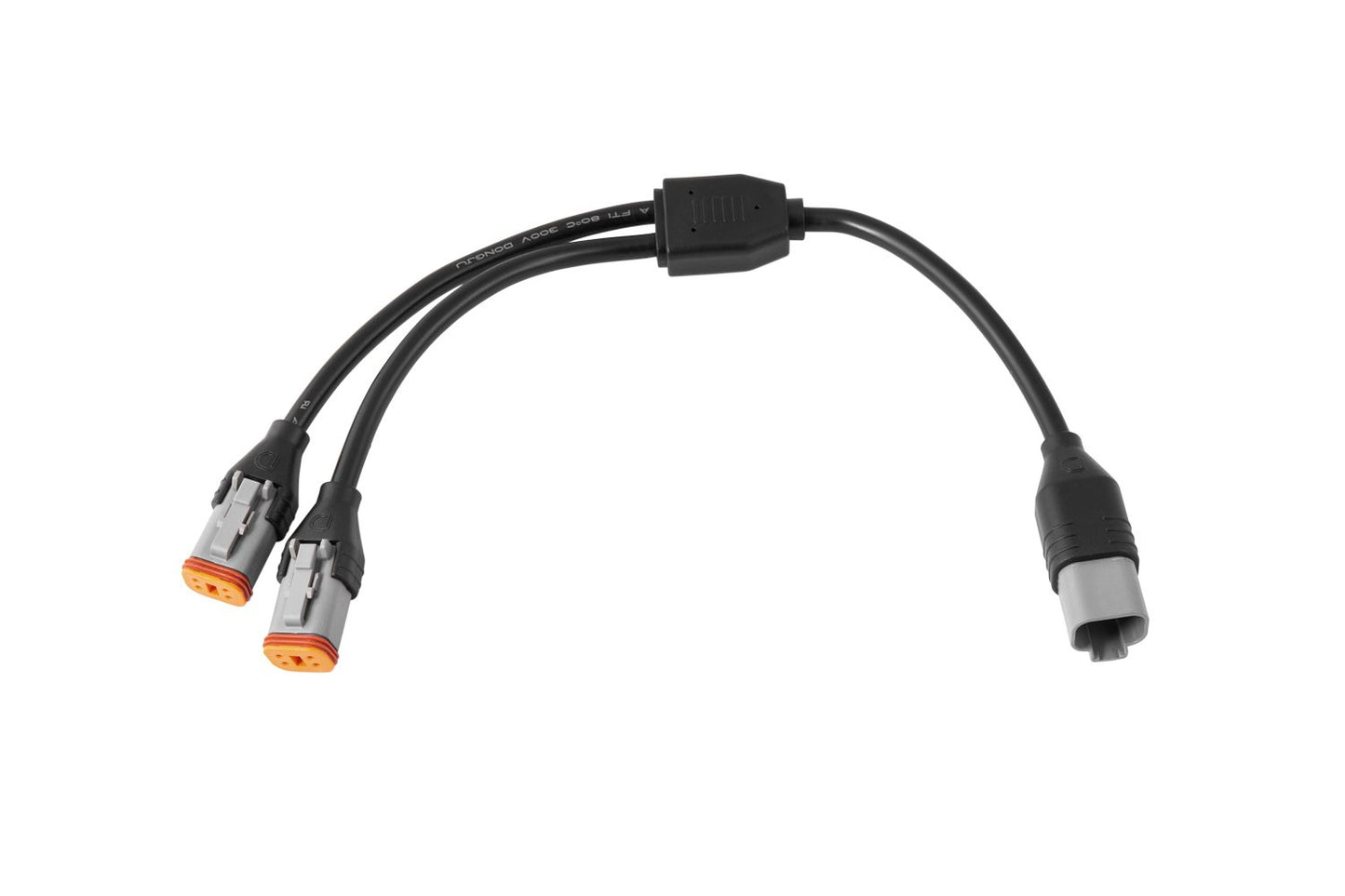

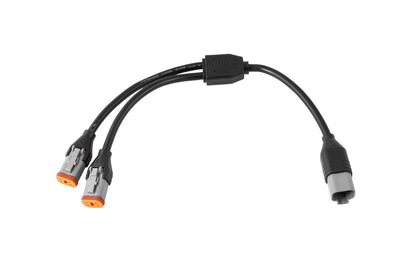

  • 16-inch 2-way splitter wire for Stage Series LED Pods with backlight functionality
  • Standard Deutsch DT 4-pin connectors
  • Heavy-duty 14AWG wire

Overview

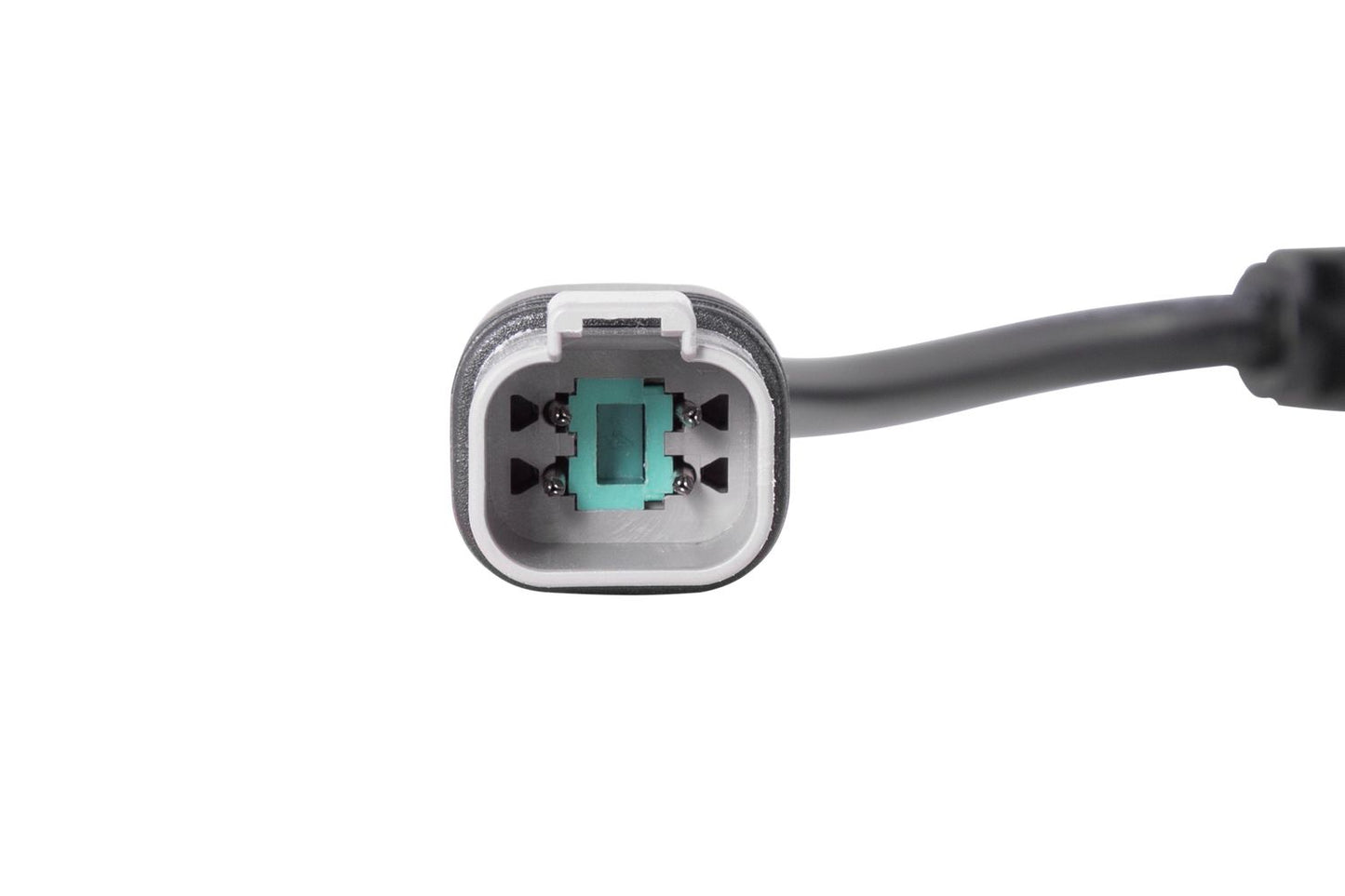

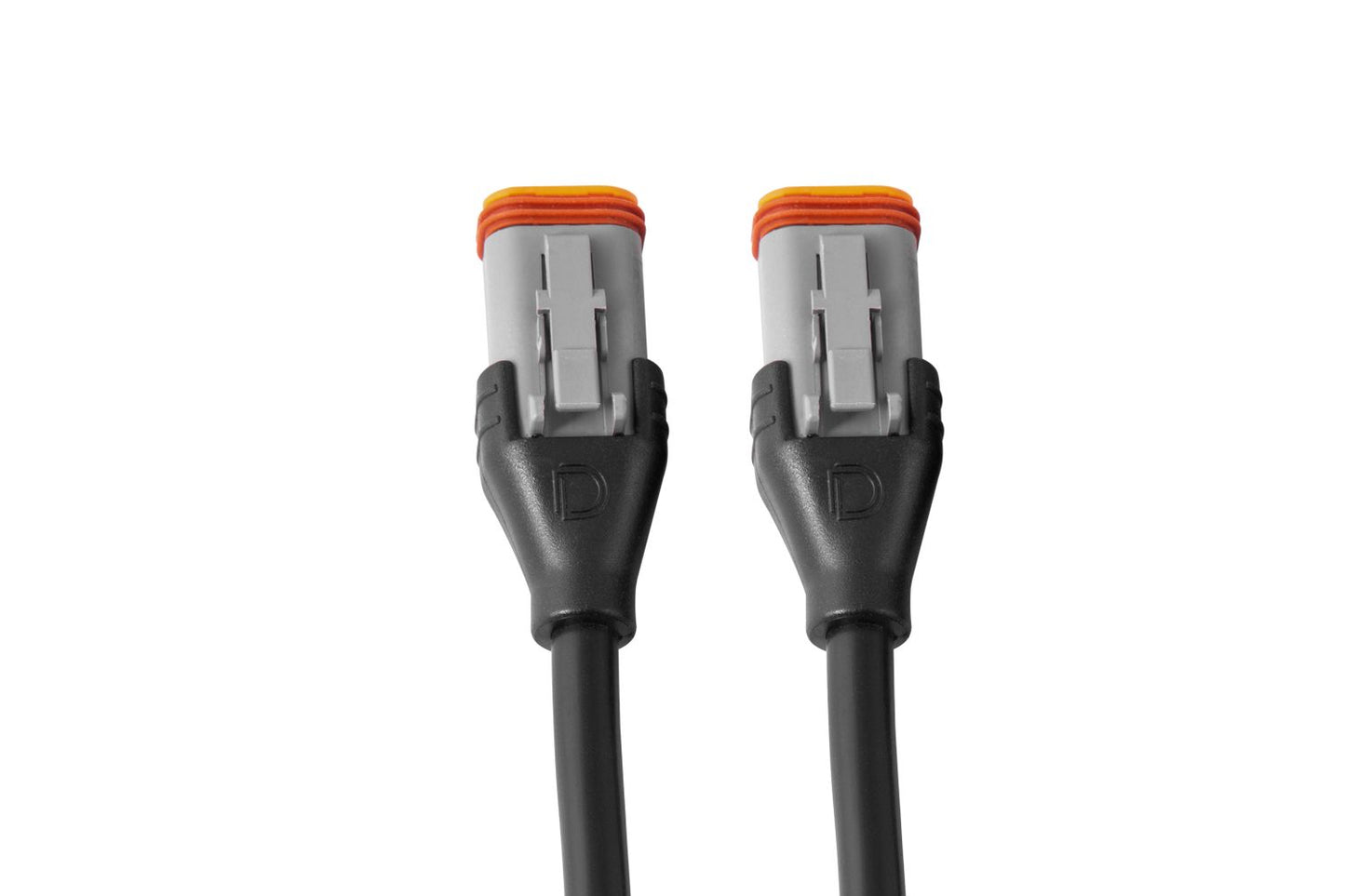

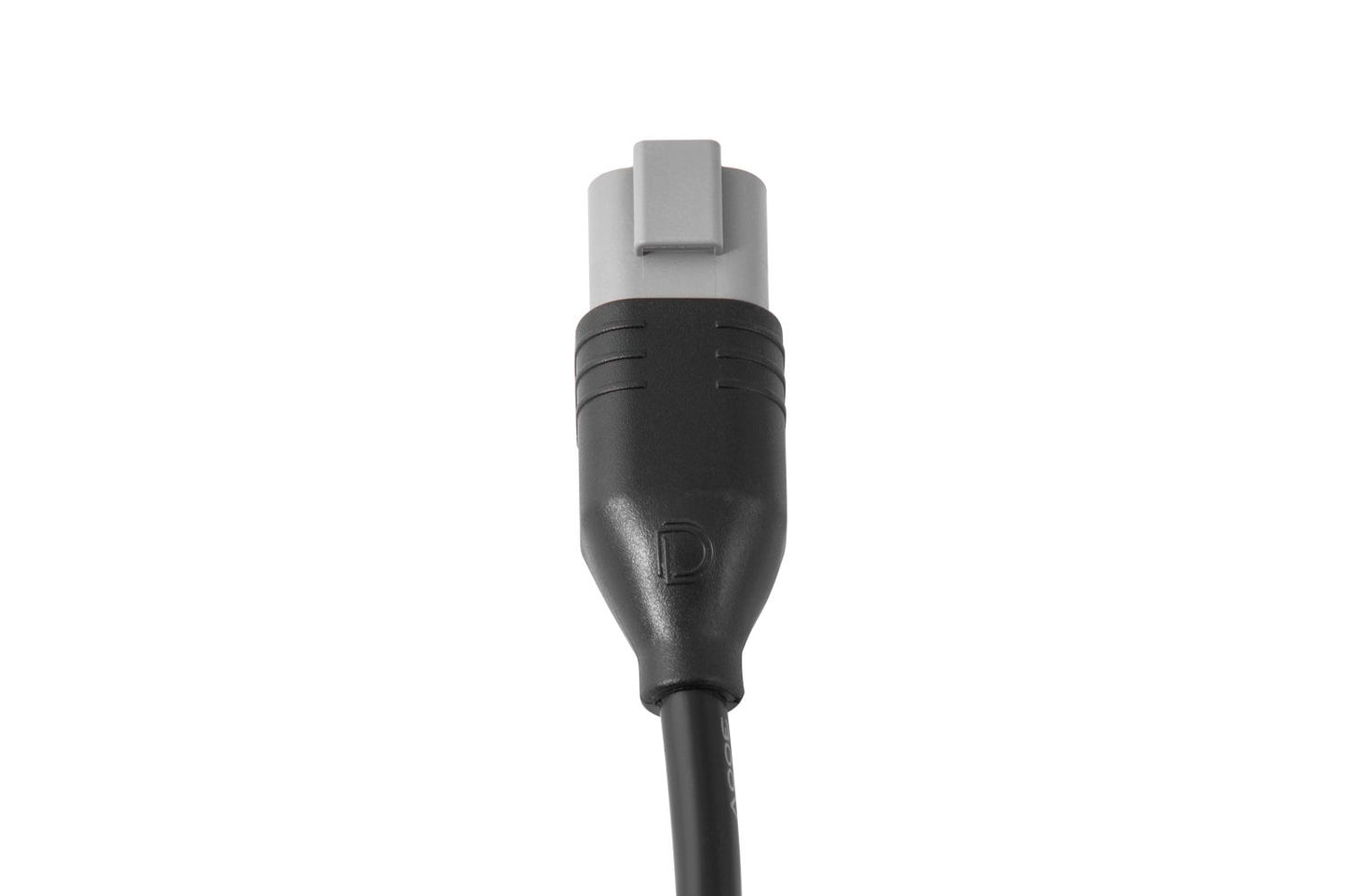

Plug-and-Play. This Deutsch DT Splitter Wire can be used anywhere you would like to split DT 4-pin power wires. This splitter wire uses standard DT 4-pin connectors, and is intended for use with our Stage Series LED Pods with backlight functionality. This splitter wire features over-molded connectors with an embossed Diode Dynamics logo, providing strain relief and protection from the elements. It includes one female DT connector and two male connectors, for plug-and-play installation.

This splitter safely powers up to 20A of auxiliary lamps. Please refer to the current draw data below.

  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!


Quantity: One (1)
Warranty: 3 year warranty

Specifications

Operating Voltage: 9-16V
Wire Size: 14AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): DT 4-Pin
Product Dimensions (in): 16 x 1 x 1
Shipped Weight (lb): 0.53

The following part number is shown on this page:

SKU Price Name Weight Driver Components
DD4100 ₹1,649 Deutsch DT 4-Pin Splitter Wire (one) 0.53 lbs

  1. can I basically use this harness to connect both my pods & then simply run one single set of wires up to my light controller? (Spod wireless) my thoughts are that this harness would be easier than having to try to tie the wires from both lights together before running them to the controller will this also work on the ss3's that I"ve got for ditch lights? using the same controller, obviously
    Absolutely! Keep in mind that when using the splitters, the outputs aren't able to be controlled individually, so you'll only be able to power those pods in unison.

  2. I’m installing fog lights on my bumper bar and was wondering if the splitter will span both connectors at a 12” separation
    The length of the connector allows for the ability to mount the pods approximately 14" apart.

  3. What splitter or what can I use to run ss3 no backlight to ss1 with backlight if I have a 3 way harness? Or better off running separate harness no splitter
    For those scenarios, we do recommend running two separate harnesses. One 2-pin harness for the non-backlit SS3s, and one 4-pin harness for the SSC1.

  4. Can I connect SSC3 and SSC1 together on one wire harness if I use with the Deutsch DT 4-Pin Splitter Wire?
    Yes, but only If you are using our Backlit/4-Pin DT SS3!

  5. Can this be used to connect two SS5 Pro light pods?
    This can certainly be used for our SS5s, as these are each rated at up to 20 amps.

  6. What is the length of the 2 legs before the Y? i.e. how far apart can 2 lights be spaced and still connected to 1 input? thanks !
    The length of the connector before the Y is approximately 7.5", so you should be able to put the pods about 14" apart at the connectors.

Installation Time: 5-10 minutes

Tools Needed: None

Modification: None
